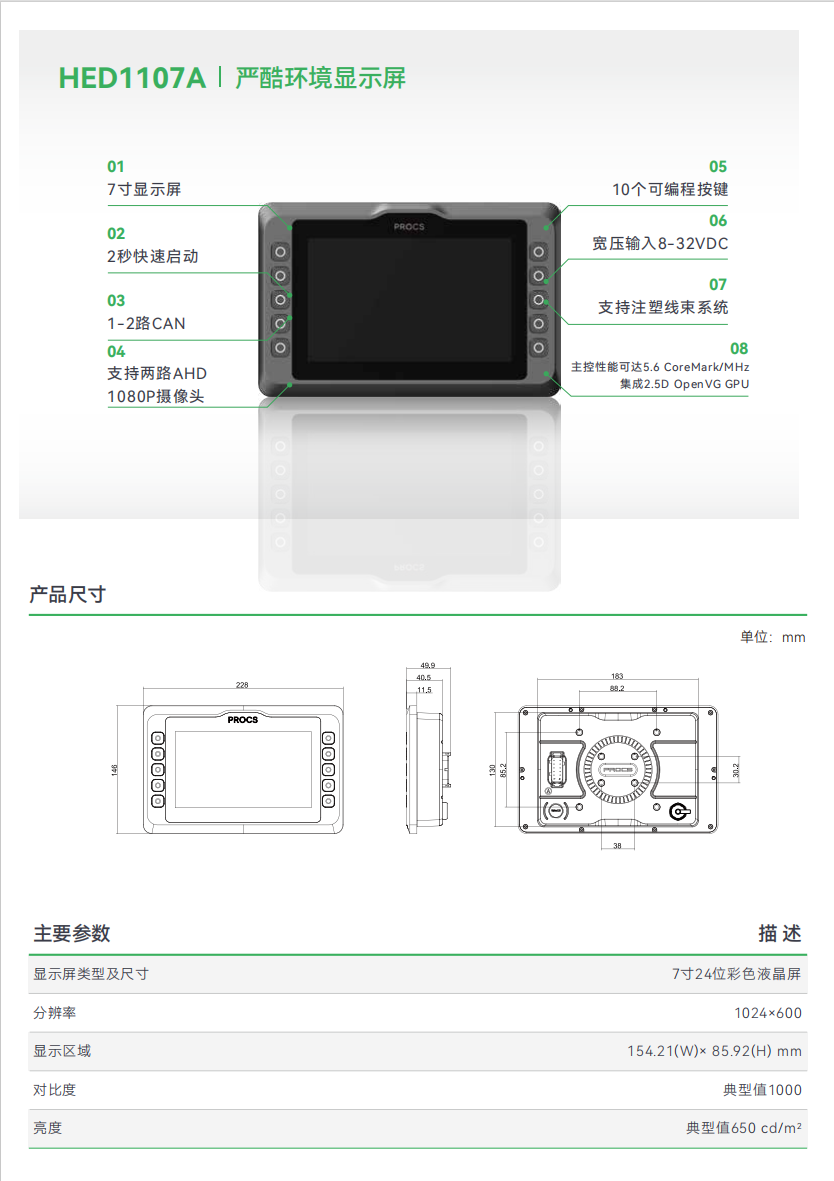

HED1107A Harsh Environment Display
HED1107A is a 7-inch rugged display featuring a 24-bit color LCD screen with a resolution of 1024×600, delivering crystal-clear visuals. It supports a rapid 2-second startup and includes dual AHD 1080P camera inputs, perfectly meeting the demands of high-definition surveillance. Equipped with 10 programmable buttons for effortless operation, this device operates reliably across an extended temperature range—from -20°C to 70°C—and boasts an IP65 protection rating, making it well-suited for harsh environments. Powered by a RISC-V 600MHz processor with an integrated 2.5D GPU, the HED1107A ensures stable performance. It comes with 128MB of RAM and 32MB of Flash memory, while supporting multiple communication interfaces for flexible installation—making it an ideal choice for industrial automation, surveillance, and other demanding applications.
Advantages:
1. Display Screen and Resolution:
Featuring a 7-inch 24-bit color LCD screen with a resolution of up to 1024×600, it delivers crisp display quality and wide viewing angles.
2. Quick Launch and Camera Support:
Supports 2-second quick start-up, enhancing user experience. Features dual AHD 1080P cameras to meet high-definition video surveillance needs.
3. Buttons and Operations:
Equipped with 10 programmable keys (with backlighting), offering flexible and convenient operation to meet the needs of various application scenarios.
4. Environmental Adaptability:
It operates within a wide temperature range (-20°C to 70°C) and can even be stored in an even broader range (-30°C to 80°C), making it suitable for various harsh environments. The product boasts an IP65 protection rating, effectively preventing dust and moisture from entering, thereby enhancing its durability.
Features:
1. Processor and Performance:
Featuring a RISC-V 600MHz processor with master control performance reaching up to 5.6 CoreMark/MHz, it integrates a 2.5D OpenVG GPU, delivering stable computing performance and enhanced graphics processing capabilities.
2. Memory and Storage:

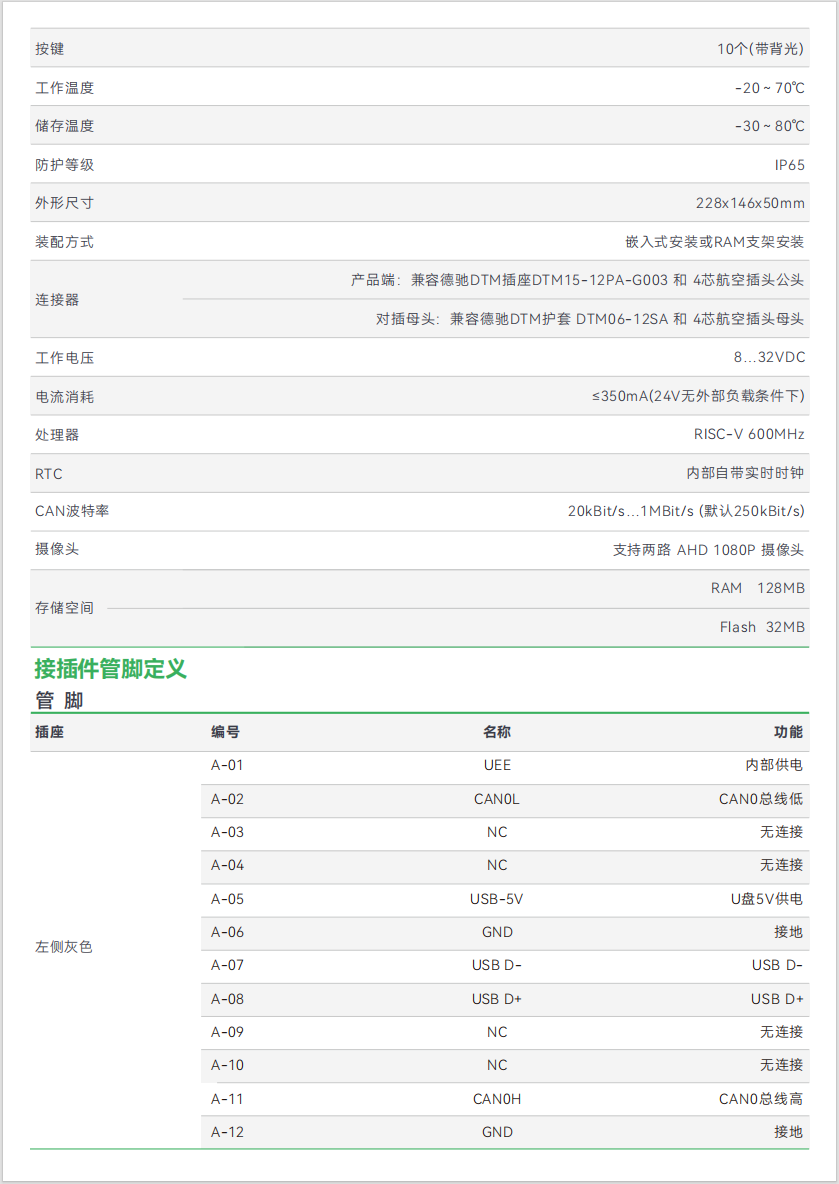

RAM 128MB, Flash 32MB, meeting data storage and processing needs.
3. Installation Method and Interface:

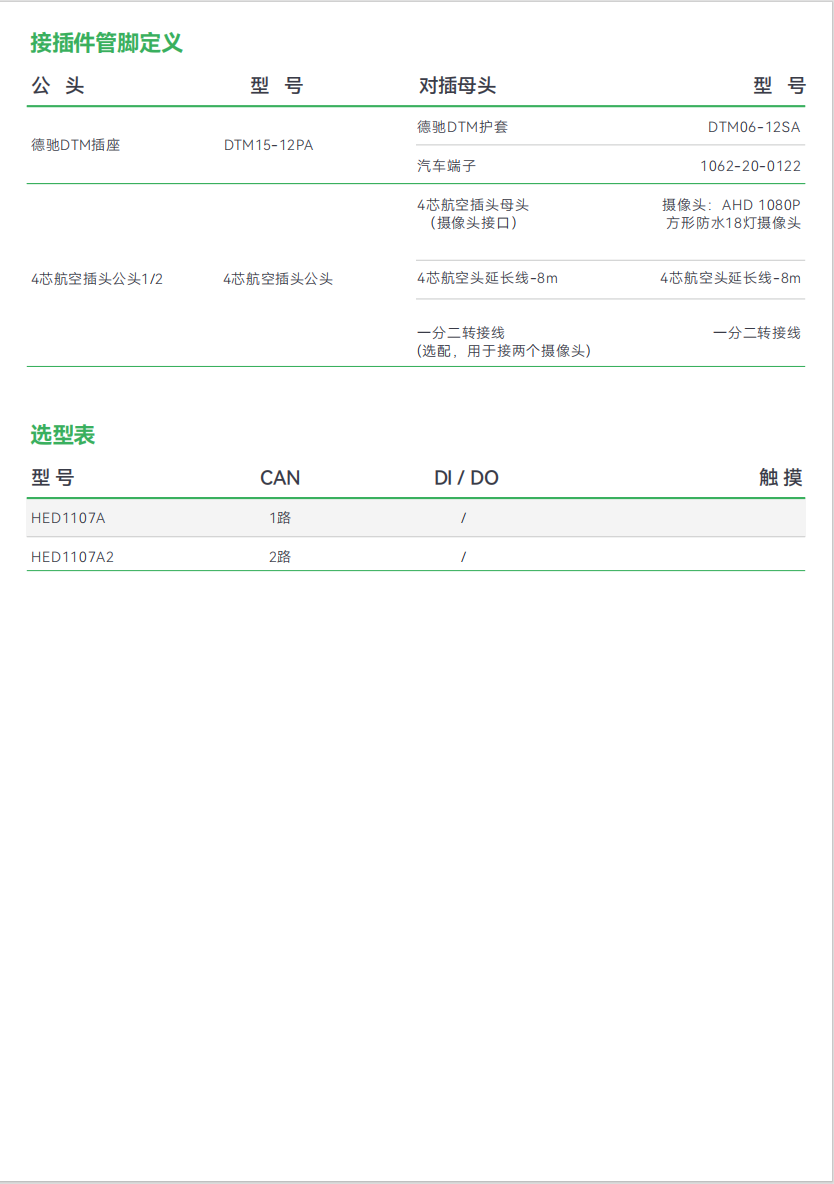

Compact in size (228 x 146 x 50 mm), it supports both embedded installation and RAM bracket mounting, and is compatible with Delphi DTM sockets and 4-pin aviation connectors, making integration and maintenance effortless.
4. Communication Interface and Functions:
Supports multiple communication interfaces, including CAN bus, with a baud rate range from 20 kBit/s to 1 MBit/s (defaulting at 250 kBit/s), meeting the connectivity and communication needs of various devices. (Note: Although not all interfaces are explicitly listed, it can be inferred from the description that common interfaces like CAN are supported.)
）
5. Camera Interface and Expandability:
Provides a 4-pin aviation plug male connector for camera connection, and optionally includes a 4-pin aviation extension cable and a Y-splitter adapter, enabling simultaneous connection of two cameras while enhancing the system's scalability and flexibility.
