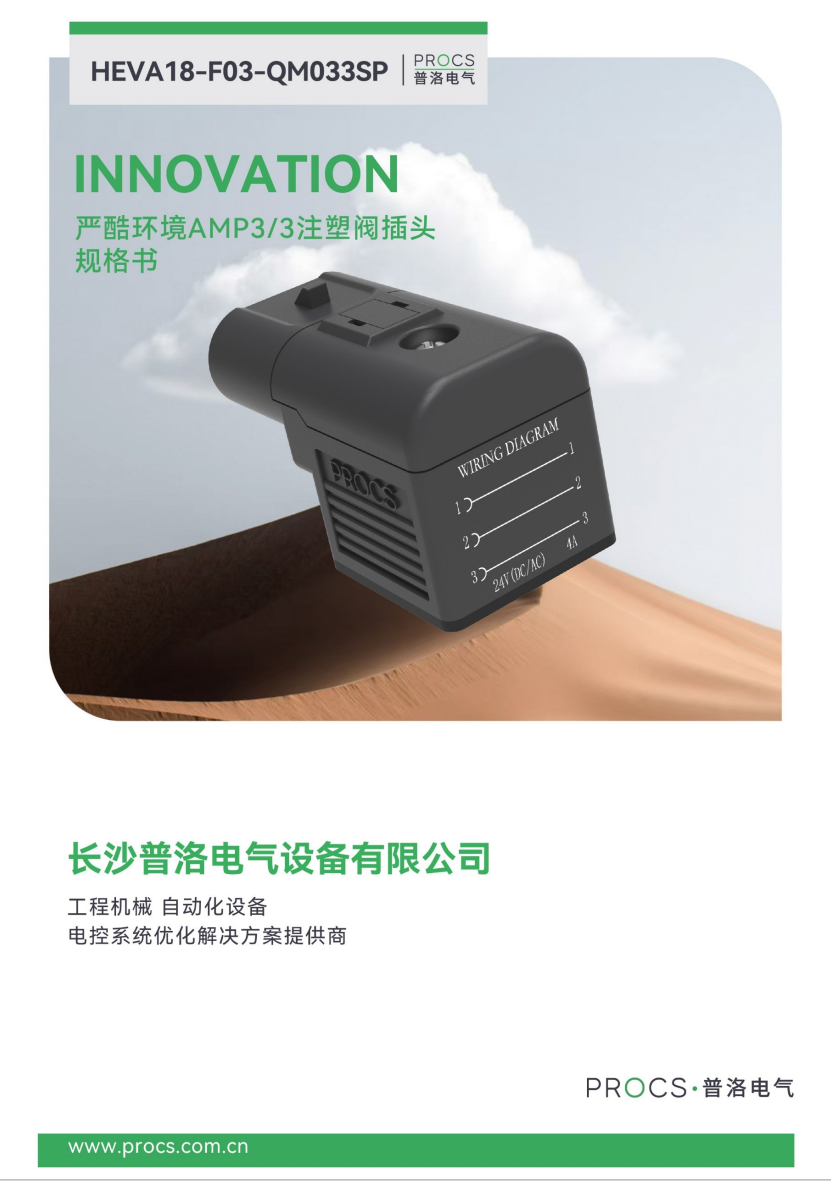

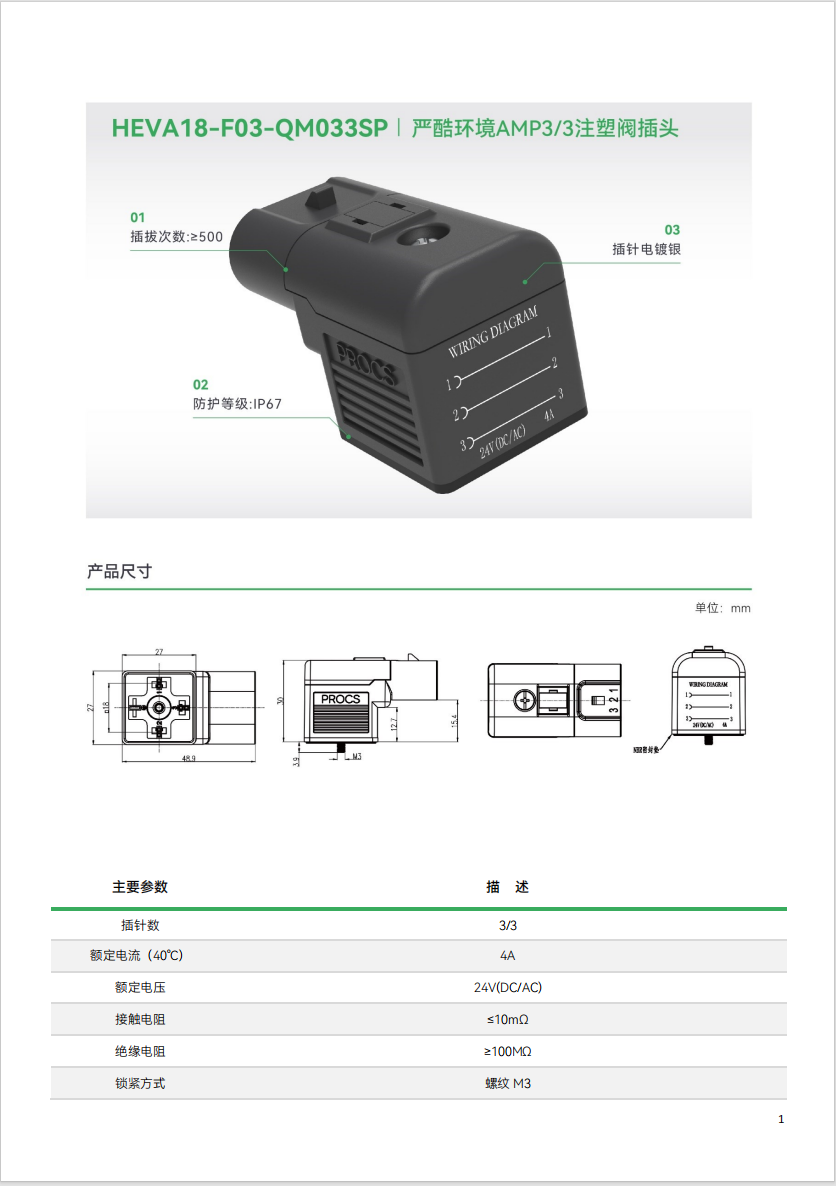

HEVA18-F03-QM033SP Harsh environment AMP3/3 injection molded valve plug
The HEVA18-F03-QM033SP injection molded valve plug boasts advantages such as a high protection rating, excellent electrical performance, low contact resistance, high insulation resistance, long lifespan, and high reliability. It also features a compact design, multiple pin count options (specific to this model), high-quality materials and craftsmanship, a wide temperature range, and clear circuit and pin diagrams. It is an excellent connector product suitable for various industrial applications.
Advantages:
1. High Protection Rating:
The product's protection rating reaches IP67, indicating excellent dust and water resistance. It can operate stably in various harsh environments, ensuring long-term reliability and stability of the equipment.
2. Excellent Electrical Performance:
The rated current is 4A at 40℃, and the rated voltage is 24V (DC/AC). These electrical parameters allow the product to meet the needs of various industrial applications, providing stable current and voltage output.
3. Low Contact Resistance:
Contact resistance does not exceed 10mΩ, which helps reduce energy loss during current transmission and improves the efficiency of electrical connections.
4. High Insulation Resistance:
Insulation resistance is no less than 100MΩ, providing good electrical isolation performance, enhancing product safety, and preventing safety accidents caused by leakage current.
5. Long Lifespan and High Reliability:
The number of mating cycles is no less than 500 times. The product has high durability and reliability, suitable for occasions requiring frequent plugging and unplugging, reducing maintenance and replacement costs.
Features:
1. Compact Design:
The product uses a compact design, facilitating installation and integration in limited spaces, improving the overall efficiency and aesthetics of the system. (Although this point is not directly mentioned in the specifications, IP67-rated connectors usually adopt a compact design to adapt to various environments).
2. Multiple Pin Count Options (Specific to this Model):
This model offers a choice of 3/3 pin counts, allowing customization according to actual needs, improving product flexibility and applicability. (Although different from the 4/3 pin count of HEVA18-F02_2-QM033SP, this is a specific feature of this model).

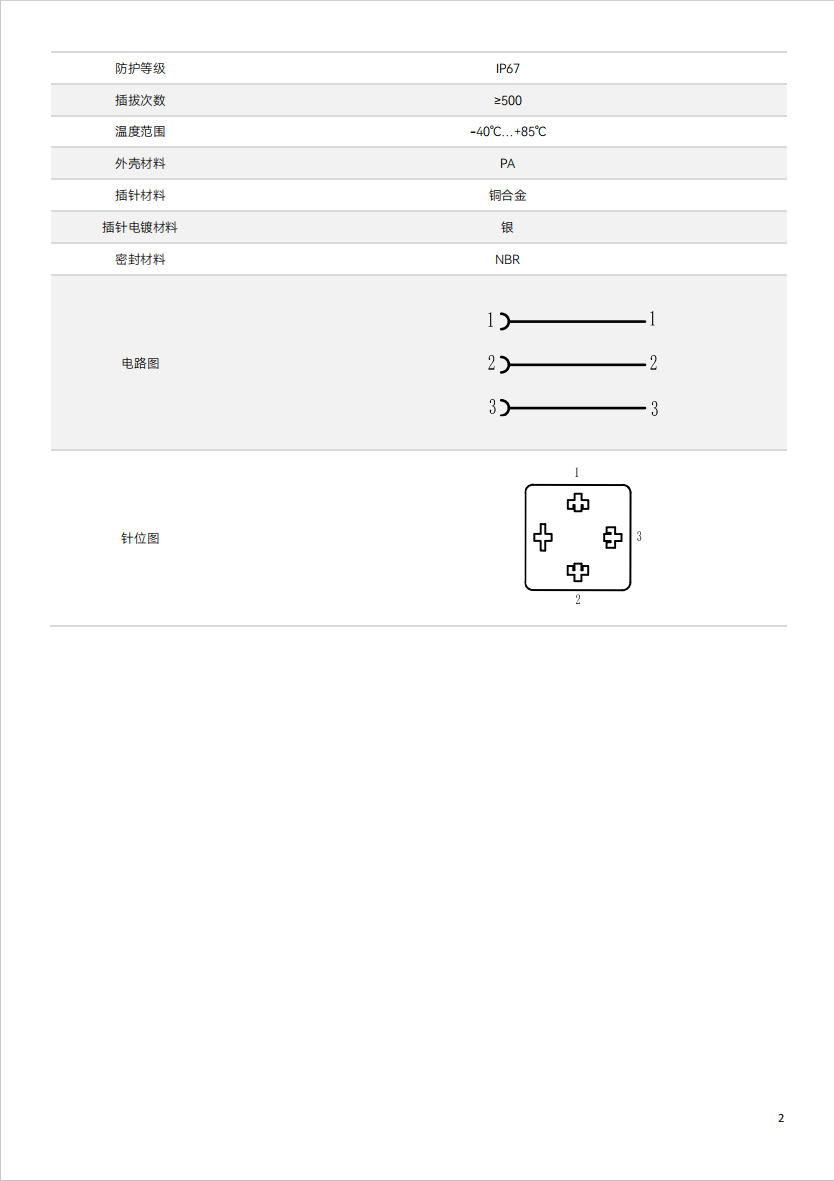

3. High-Quality Materials and Craftsmanship:
The housing material is PA (polyamide), and the pin material is copper alloy with silver plating. These high-quality materials ensure the durability and reliability of the product. The sealing material is NBR (nitrile rubber), further enhancing the product's protection performance.
4. Wide Operating Temperature Range:
The product can operate normally in a temperature range of -40℃ to +85℃, allowing it to adapt to various extreme climates and ensuring its wide applicability.
