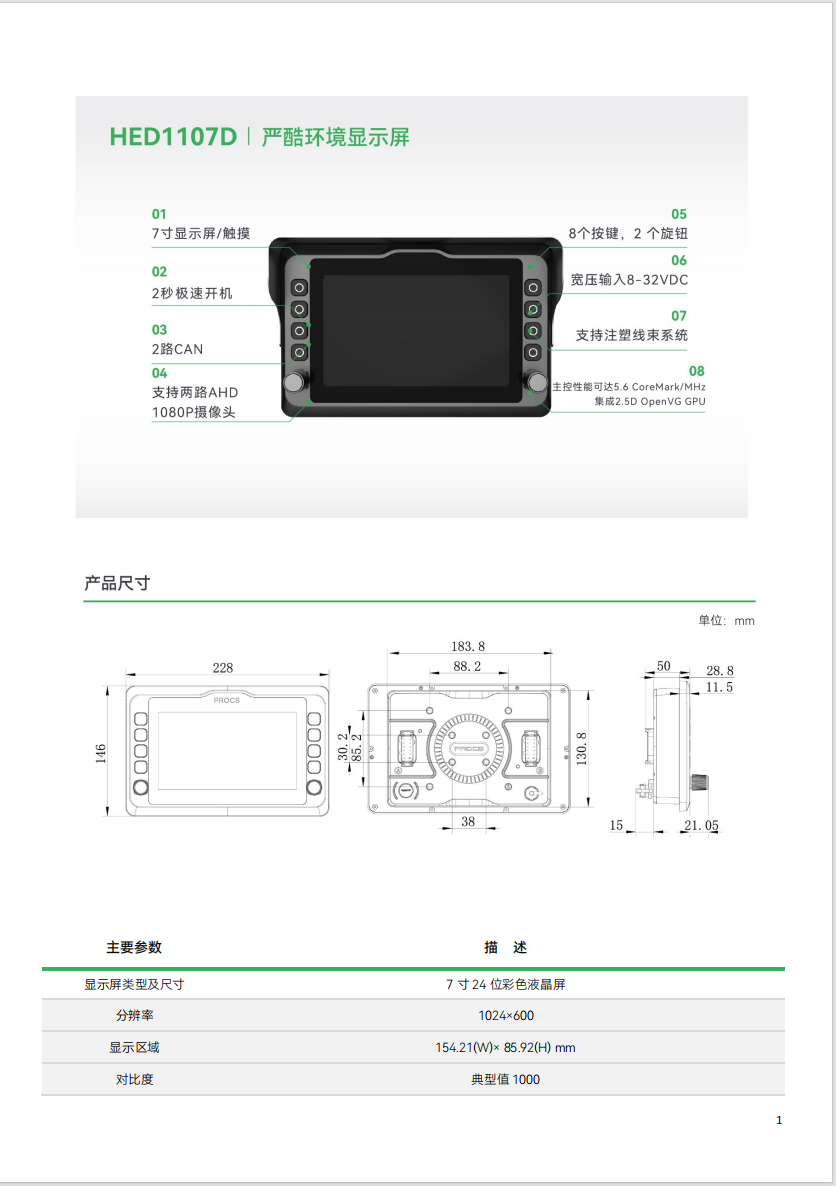

HED1107D Harsh Environment Display
The HED1107D display features a 7-inch high-definition 24-bit color LCD screen with a resolution of 1024×600, providing clear display; it supports two AHD 1080P cameras, offering high-definition video monitoring; equipped with 8 buttons, 2 knobs, and touch operation for flexible and convenient use; it has a wide operating temperature range (-20℃ to 70℃) and an IP65 protection rating, suitable for harsh environments; it offers large storage space (RAM 128MB, Flash 32MB) and supports voice alarms; flexible installation, compatible with Dechi DTM interface and 4-pin aviation connector; it meets electromagnetic compatibility standards, has a built-in real-time clock, and supports wide voltage input (8-32VDC), making it an ideal product for industrial automation and monitoring applications. Its high-definition display, flexible operation, strong camera support, adaptability to harsh environments, large storage capacity, flexible installation and connection, electromagnetic compatibility, real-time clock, and wide voltage input make it an ideal choice for industrial automation and monitoring fields.
Advantages:
1. High-Definition Display and Performance:

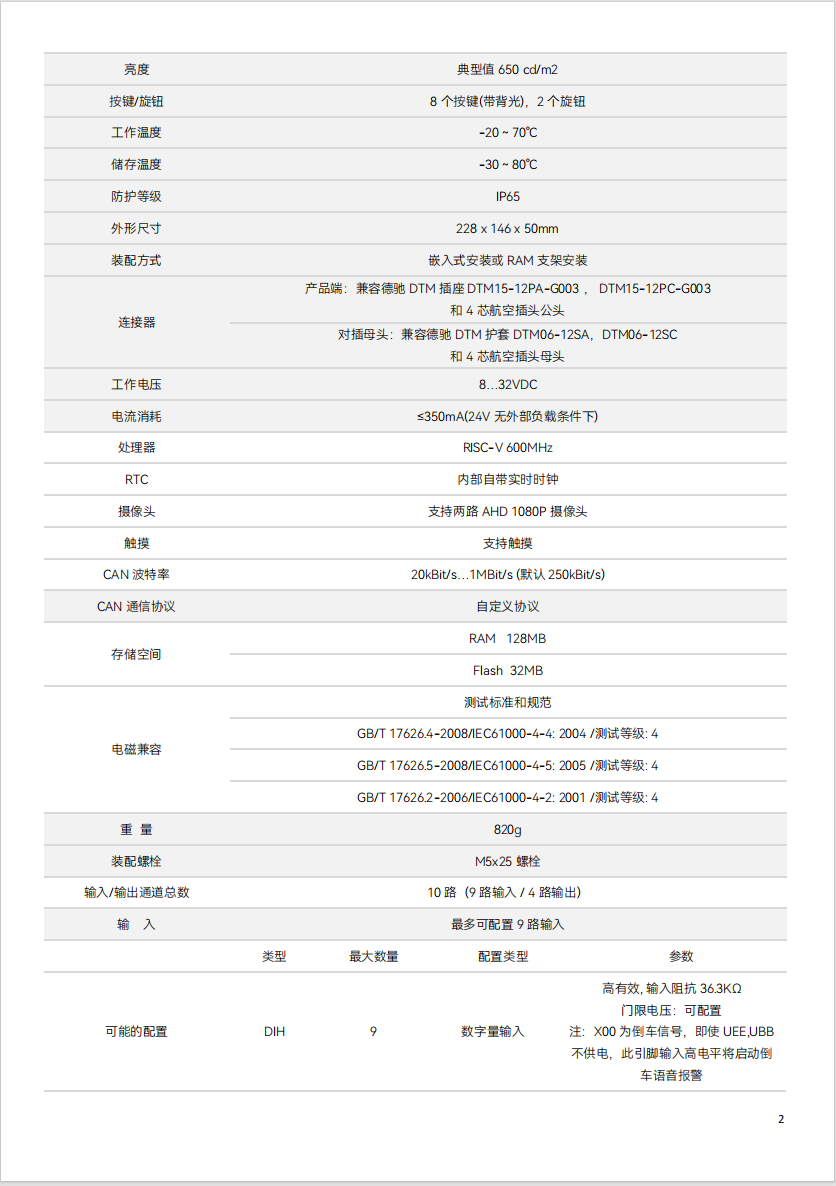

It uses a 7-inch 24-bit color LCD screen with a resolution of 1024×600, providing a large display area, high contrast, and brightness (typical value 650 cd/m²), offering a clear and vivid visual effect. The processor is RISC-V 600MHz, providing stable computing performance.
2. Convenient Operation and Expandability:

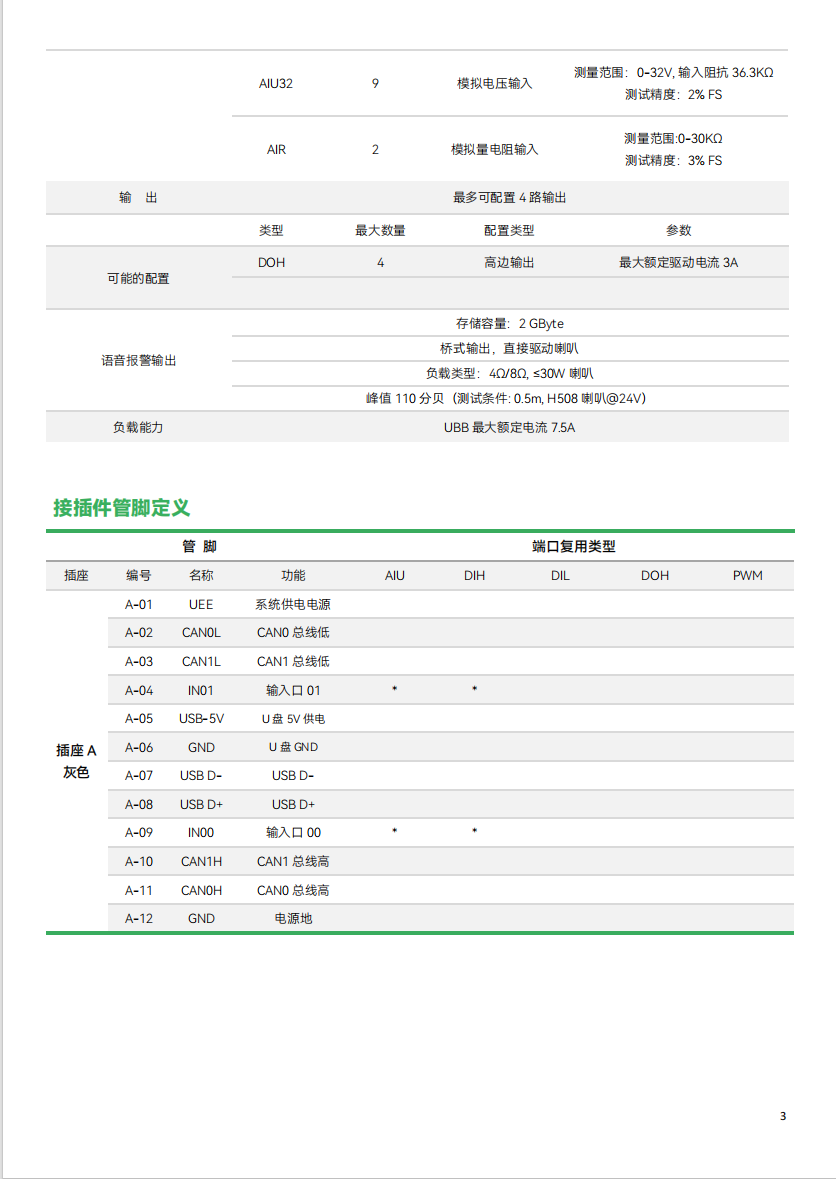

Equipped with 8 buttons (with backlight) and 2 knobs for flexible operation. It supports touch operation and can be configured with up to 10 input/output channels (9 inputs/4 outputs), including digital input, analog voltage input, and analog resistance input, meeting the needs of different application scenarios.
3. Camera Support and Video Functions:
Supports two AHD 1080P cameras, providing high-definition video monitoring capabilities. Optional camera extension cables and 1-to-2 splitters are available for convenient camera layout and expansion.
4. Environmental Adaptability and Protection Rating:
Wide operating temperature range (-20℃ to 70℃), and even wider storage temperature range (-30℃ to 80℃), adapting to various harsh environments. IP65 protection rating effectively prevents dust and moisture from entering, enhancing product durability.
Storage and Data Recording:
RAM 128MB, Flash 32MB, meeting data storage and processing needs. It has a voice alarm output function, a storage capacity of up to 2GByte, and can directly drive a speaker.
Features:
1. Flexible Installation and Connection:

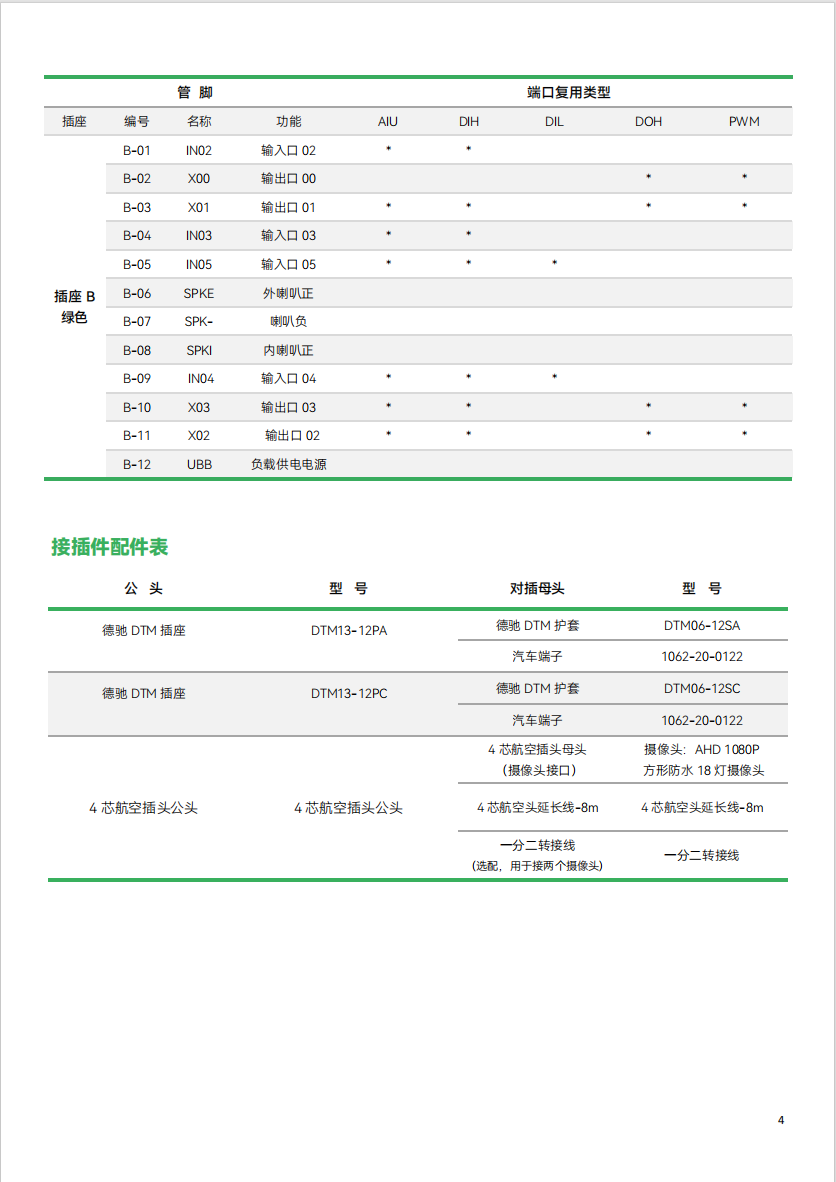

Compact dimensions (228x146x50mm), supporting embedded installation or RAM bracket installation. Compatible with Dechi DTM sockets and sheaths, as well as 4-pin aviation connectors, for easy integration and maintenance.
2. Electromagnetic Compatibility and Safety Certification:
Complies with GB/T 17626 series electromagnetic compatibility testing standards and specifications, with a test level of 4, ensuring stable operation of the product in complex electromagnetic environments.
3. Real-Time Clock and Wide Voltage Input:
Built-in real-time clock for convenient time management and data recording. Supports wide voltage input (8-32VDC), adapting to different voltage environments.
