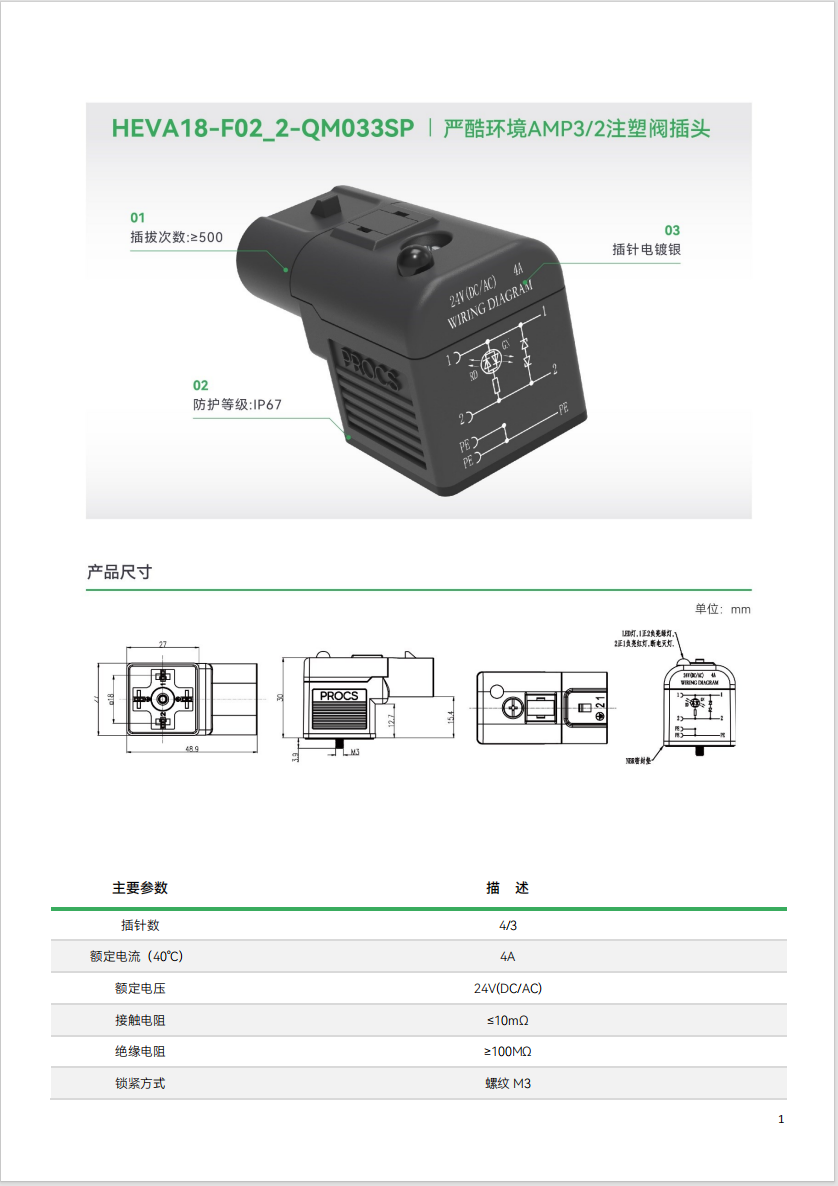

HEVA18-F02_2-QM033SP Harsh Environment AMP3/2 Injection-Molded Valve Connector
The HEVA18-F02_2-QM033SP connector boasts high protection ratings, high-rated current and voltage, low contact resistance, superior insulation resistance, and an extended number of mating cycles. It also features multiple pin options, a threaded locking mechanism, an extensive temperature range, premium-quality materials, and detailed circuit diagrams along with pin arrangement charts—making it an outstanding connector product ideal for a wide variety of industrial applications.
Advantages:
1. High Protection Level:
The product meets the IP67 protection rating, meaning it offers exceptional dustproof and waterproof capabilities, enabling stable operation even in harsh and challenging environments—and ensuring reliable performance and long-term durability.
2. High Rated Current and Voltage:
The rated current is 4A at 40°C, and the rated voltage is 24V (DC/AC). These electrical parameters make the product suitable for a wide range of industrial applications that require high current and high voltage.
3. Low Contact Resistance:
The contact resistance does not exceed 10 mΩ, and this low resistance value ensures efficient and stable current transmission while minimizing energy losses caused by resistance.
4. High Insulation Resistance:
The insulation resistance is no less than 100 MΩ, providing excellent electrical isolation, preventing safety accidents caused by leakage current, and enhancing the product's overall safety.
5. Long plug-and-play cycles:
The plug-and-play cycle count is no fewer than 500, indicating that the product boasts high durability and reliability, making it suitable for applications requiring frequent plugging and unplugging.
Features:
1. Multiple pin count options:
The product offers a choice of 4/3 pin configurations, allowing customization based on actual needs and enhancing both the product's flexibility and versatility.
2. Thread-locking method:
The use of an M3 threaded locking mechanism ensures the connector's stability and reliability, preventing loosening caused by vibration or impact.
3. Wide Temperature Range:
The temperature range spans from -40°C to +85°C, enabling the product to withstand a variety of climatic conditions—from extreme cold to scorching heat—thus ensuring its wide applicability.
4. Premium Materials:
The shell material is made of PA (polyamide), the pin material is a copper alloy with silver plating, and the sealing material is NBR (nitrile rubber). These high-quality materials ensure the product's durability and reliability.

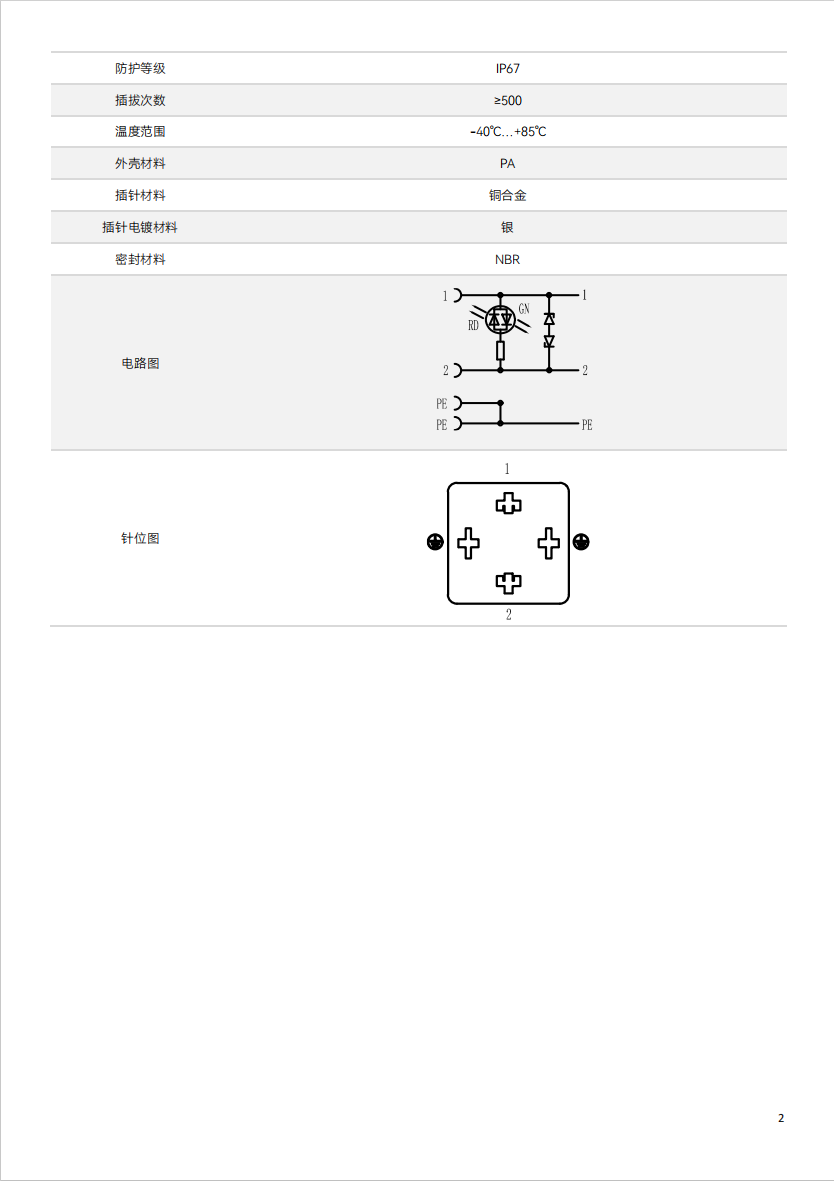

5. Circuit diagrams and needle position charts:
The product introduction provides detailed circuit diagrams and pin layouts, making installation and wiring easy for users and enhancing the product's usability.
