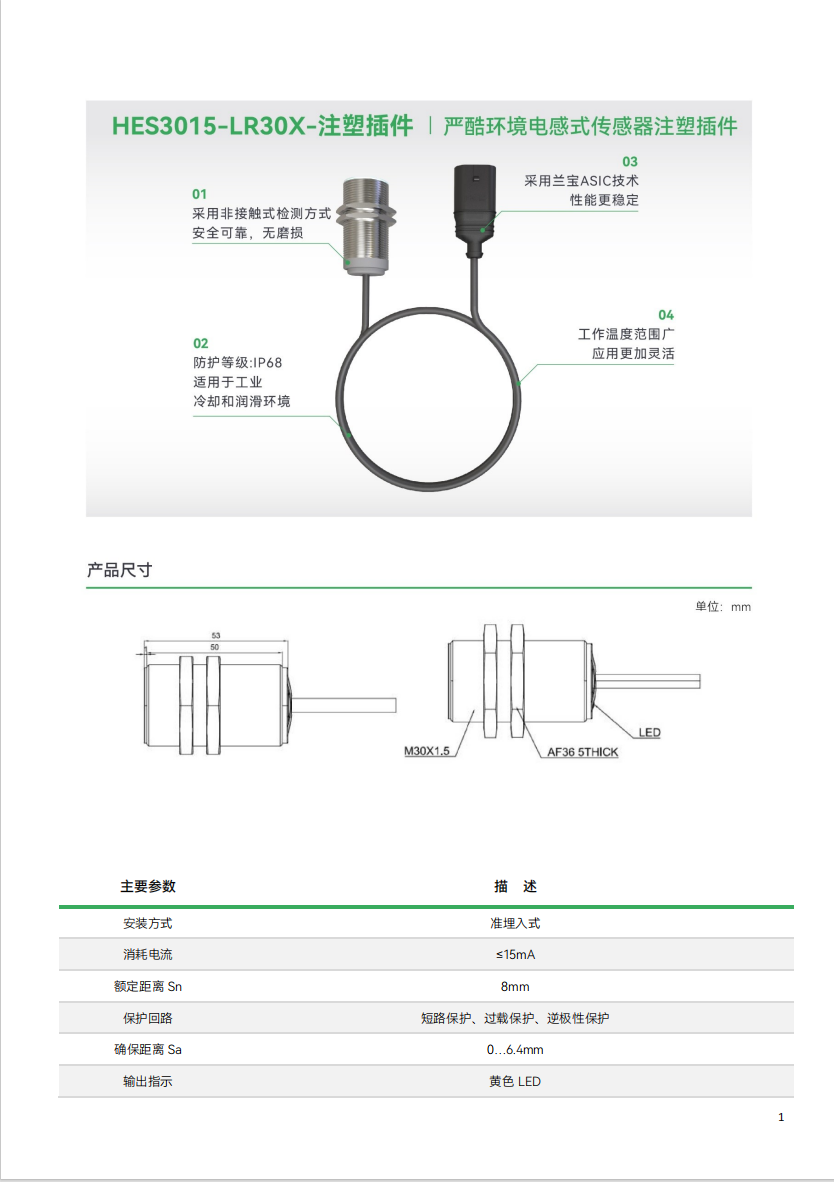

HES3015-LR30X Injection-Molded Insert
HES3015-LR30X-injection molded plug-in, with its high protection rating, wide environmental temperature range, multiple protective features, precise switching control, and exceptional resistance to vibration and shock, along with its embedded mounting method, low power consumption, versatile output options, high insulation impedance, standardized target and connection methods, and clear output indication—makes it an outstanding injection-molded plug-in product ideal for use in a variety of harsh environments.
Advantages:
1. High Protection Level:
The product boasts an IP68 protection rating, meaning it offers exceptional dustproof and waterproof capabilities, enabling it to operate reliably even in harsh environments—making it suitable for a wide range of industrial applications.
2. Wide Environmental Temperature Range:
The operating temperature range spans from -40°C to 85°C, enabling the product to withstand extreme climate conditions—whether it's the frigid north or the scorching south—while ensuring reliable performance in all scenarios.
3. Multiple protection features:
It integrates short-circuit protection, overload protection, and reverse polarity protection features, effectively preventing equipment damage caused by electrical faults while enhancing the product's safety and reliability.
4. Precise On/Off Control:
The switching point offset does not exceed ±10%, ensuring precise switch control, enhancing system stability, and improving control accuracy.
5. Resistant to Vibration and Shock:
The product can withstand an amplitude of 1.5 mm and vibration frequencies ranging from 10 to 50 Hz (2 hours each in the X, Y, and Z directions), as well as an impulse voltage rating of 1000 V/AC at 50/60 Hz for 60 seconds, demonstrating exceptional mechanical strength and durability.
Features:
1. Embedded installation method:
The product features a flush-mount installation method, making it easy to integrate into various devices, saving installation space while enhancing the overall aesthetic appeal of the system.
2. Low-current consumption:
Consumes no more than 15mA of current, reducing energy consumption, helping to conserve resources and cut emissions, and improving the system's energy efficiency ratio.
3. Multiple output methods:

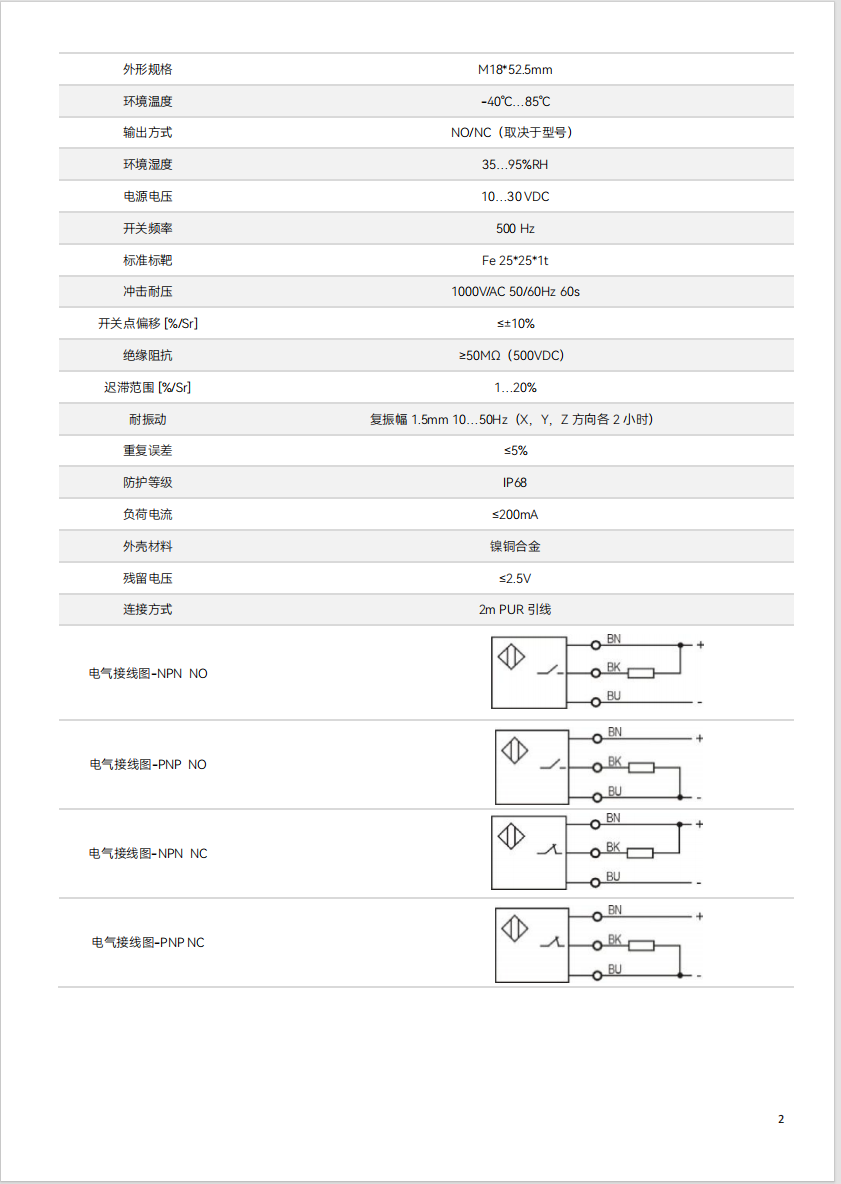

It offers two output options: NO (Normally Open) and NC (Normally Closed), allowing users to select the appropriate type based on their specific needs, thereby enhancing the product's flexibility and versatility.
4. High Insulation Resistance:
The insulation impedance is no less than 50 MΩ (500 VDC), ensuring safe electrical isolation and preventing safety incidents caused by leakage current.
5. Standard targets and connection methods:
The product comes with a standard target Fe 30301t, making it easy for testing and calibration. Additionally, it features a 2m PUR lead cable for connection, enhancing the stability and reliability of the link.
6. Clear Output Instructions:
Equipped with a yellow LED as the output indicator, users can intuitively understand the product's operational status, enhancing the system's maintainability.
