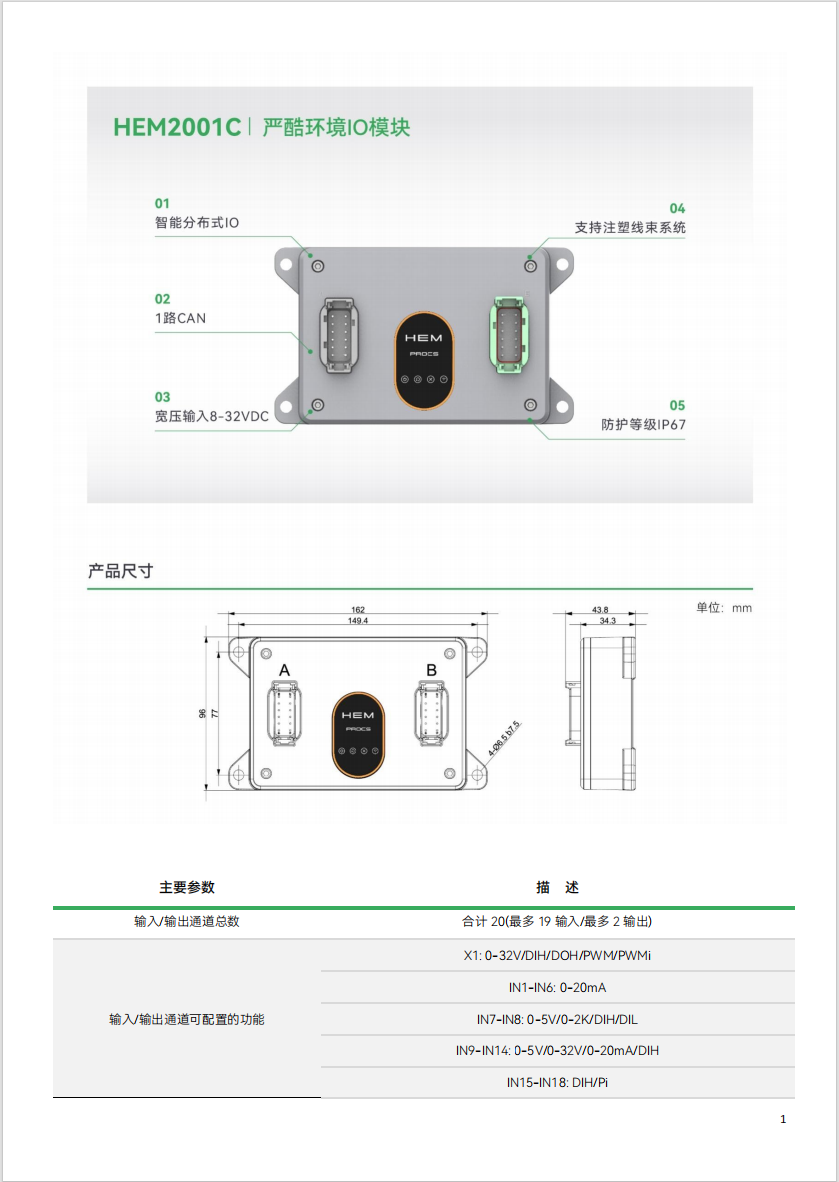

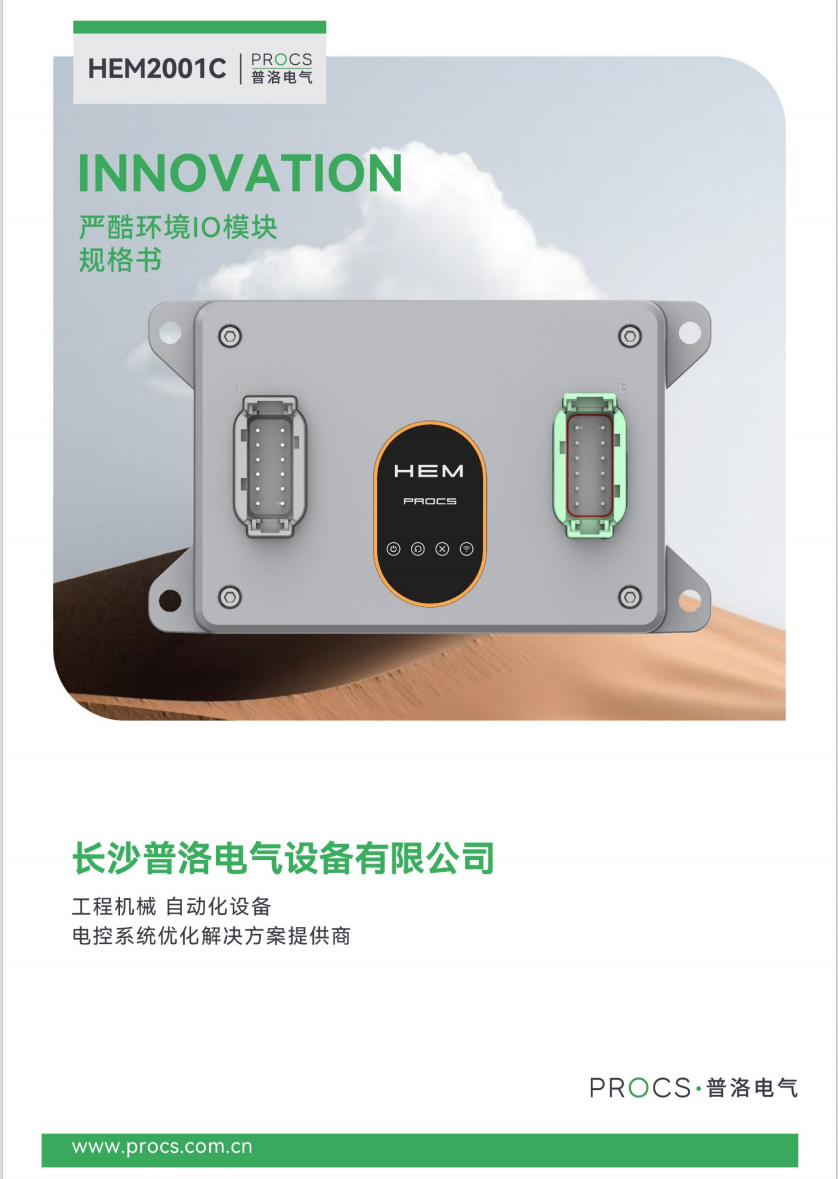

HEM2001C Harsh Environment IO Module
The HEM2001C rugged environment IO module stands out as an excellent IO product designed for harsh conditions, thanks to its intelligent distributed IO system, wide voltage input range, high protection rating, flexible input/output channel configuration, robust computing capabilities, and extensive communication interfaces.
Advantages:
1. Intelligent Distributed I/O System:
HEM2001C supports intelligent distributed I/O, enabling flexible connectivity through an injection-molded harness system. This facilitates seamless integration and expansion in complex industrial environments, enhancing the system's scalability and versatility.
2. Wide voltage input range:
The product supports a wide voltage input range of 8–32VDC, making it compatible with various power environments and enhancing both its versatility and reliability—ensuring stable operation even under fluctuating voltage conditions.
3. High Protection Level:
The product achieves an IP67 protection rating, effectively preventing dust and water from entering, ensuring stable operation even in harsh industrial environments, and ultimately extending its service life.
4. Flexible input/output channel configuration:
The total number of input/output channels adds up to 20 (with a maximum of 19 inputs and up to 2 outputs), and the input/output channels offer versatile, configurable functionality, including various types such as 0–32V, DIH, DOH, PWM, and PWMi, catering to the needs of diverse application scenarios.
5. Powerful computing capabilities:
Featuring a 32-bit Cortex M4 processor running at 120 MHz, the product delivers powerful computing capabilities and data-processing speed, ensuring efficient system operation and rapid responsiveness.
6. Rich communication interfaces:
It provides one × CAN 2.0B communication port, supporting Prolo's custom extended frame protocol, making it easy to achieve data communication and integration with other devices, thereby enhancing the system's compatibility and scalability.
Features:
1. Robust and Durable Shell Design:
The upper shell is made of plastic, while the lower shell is crafted from aluminum alloy. This combined design not only ensures the product’s lightweight nature but also enhances its durability and impact resistance, making it well-suited for a variety of harsh industrial environments.
2. Wide operating temperature range:

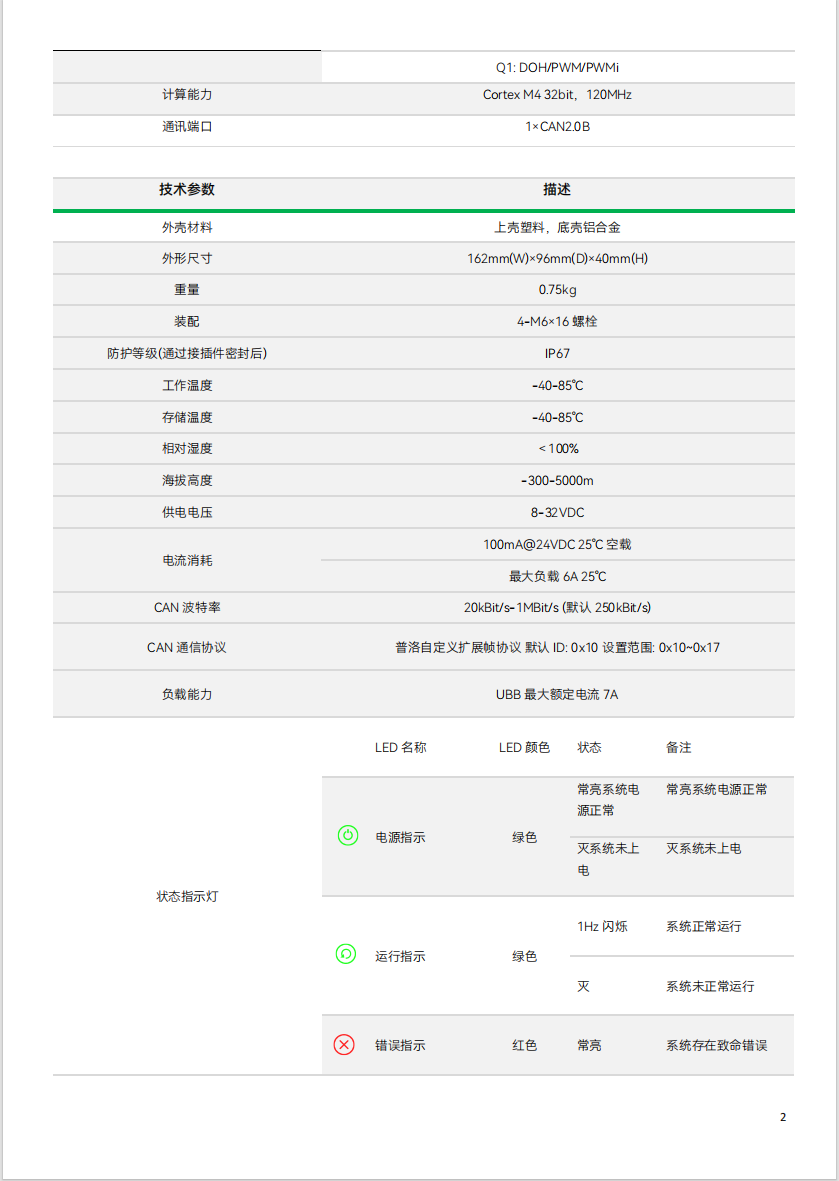

The operating temperature range spans from -40°C to 85°C, and the storage temperature range is similarly set between -40°C and 85°C, enabling the HEM2001C to withstand a variety of extreme temperature environments while ensuring reliable operation under all climatic conditions.
3. Multiple indicator light statuses:
It provides multiple indicator light statuses, including power, operation, error, and communication indicators, allowing users to easily understand the product's working status and fault information, thereby enhancing the system's maintainability.
4. High-precision analog input/output:

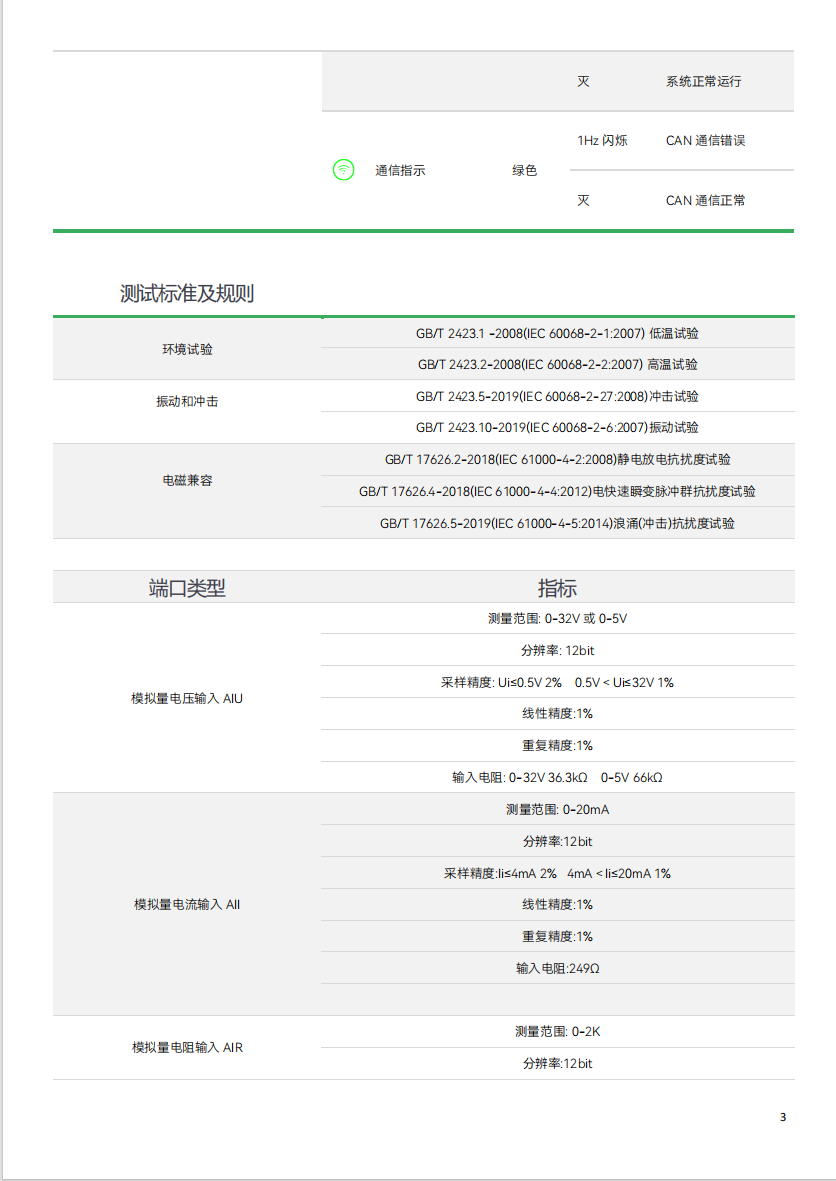

Both analog voltage and current inputs feature high accuracy and repeatability, ensuring precise data acquisition and control while enhancing the system's overall performance.
5. Configurable output types:

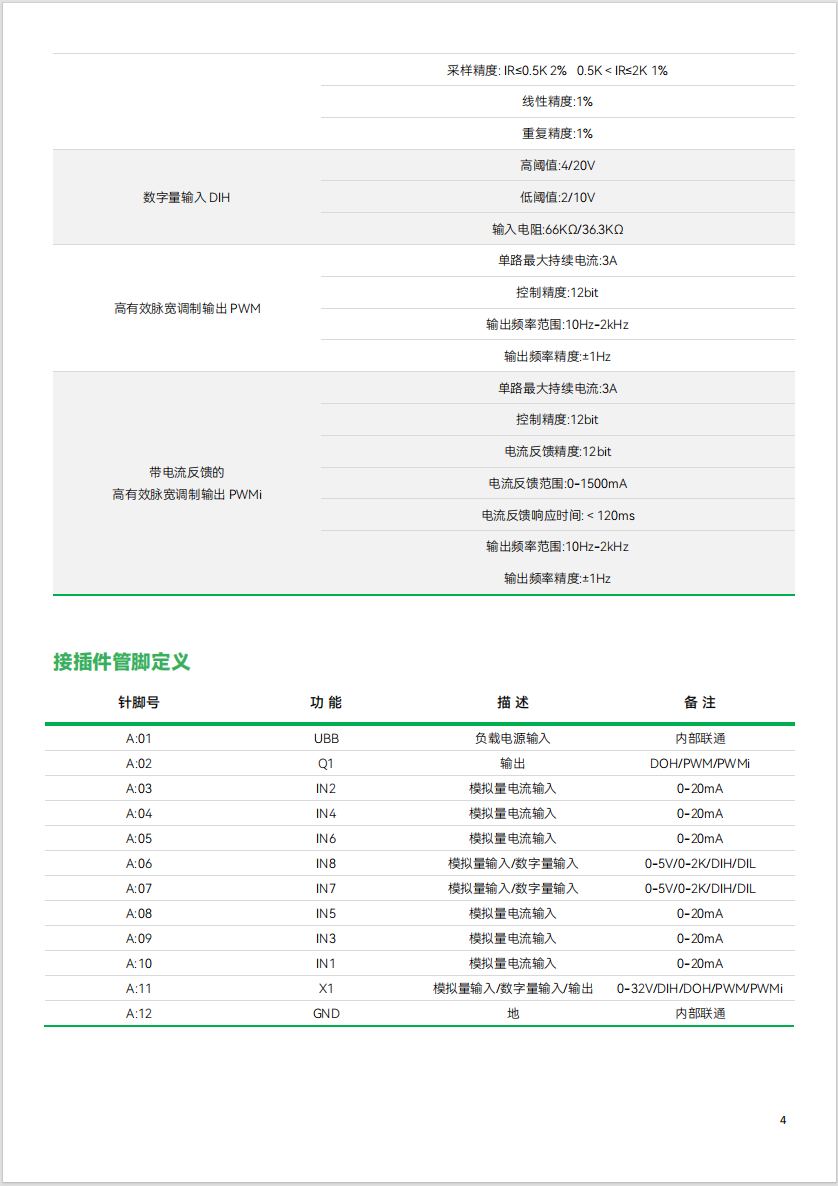

It supports multiple output types, including DOH (Digital Output High Effective), PWM (Pulse Width Modulation Output), and PWMi (High-Effective Pulse Width Modulation Output with Current Feedback), among others. These output types can be configured according to specific application requirements, enhancing the system's flexibility and control accuracy.
