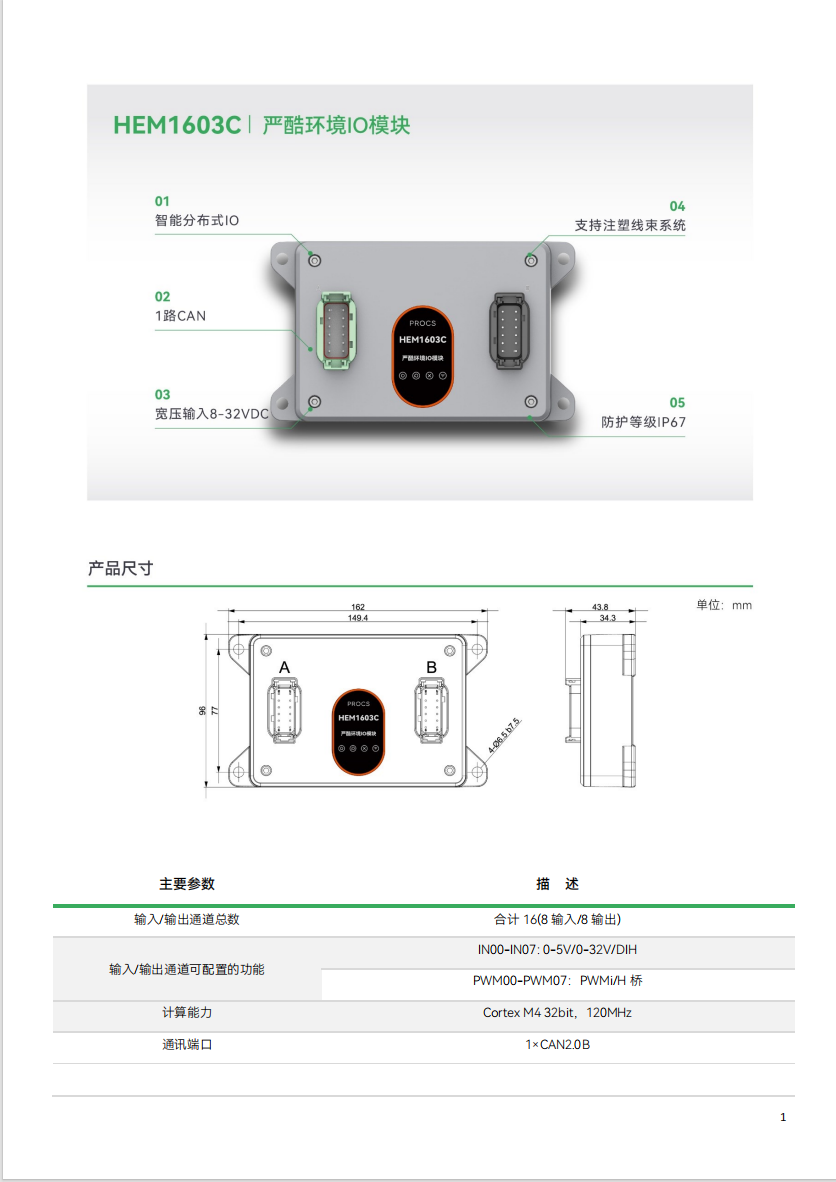

HEM1603C Harsh Environment IO Module
The HEM1603C rugged environment IO module stands out as an excellent IO product designed for harsh conditions, thanks to its intelligent distributed IO capabilities, wide-voltage input support, high-level protection, flexible input/output configurations, robust computing power, and a rich array of communication interfaces.
Advantages:
1. Intelligent Distributed I/O Function:
HEM1603C supports intelligent distributed I/O and can be flexibly connected via an injection-molded harness system, making it easy to integrate and expand in complex industrial environments while enhancing the system's overall efficiency and reliability.
2. Wide-voltage input capability:
The product supports a wide voltage input range of 8–32VDC, a feature that enables the HEM1603C to adapt to various power environments, enhancing the product's versatility and adaptability.
3. High Protection Level:
The product boasts an IP67 protection rating, ensuring reliable operation even in harsh industrial environments—such as those with high dust levels, excessive humidity, or occasional water splashes.
4. Flexible input/output configuration:
Provides 16 input/output channels (8 inputs/8 outputs), which can be configured for a variety of functions, including 0-5V/0-32V analog input, DIH (digital input high-threshold), PWM (pulse-width modulation output), and more, meeting the diverse needs of different application scenarios.
5. Powerful computing capabilities:
Featuring a 32-bit Cortex M4 processor running at 120MHz, the product delivers outstanding computing power and data-processing speed, ensuring highly efficient system operation.
6. Rich communication interfaces:
It provides one × CAN 2.0B communication port, supporting Prolo's custom extended frame protocol, making it easy to achieve data communication and integration with other devices, thereby enhancing the system's flexibility and scalability.
Features:
1. Robust and Durable Design:

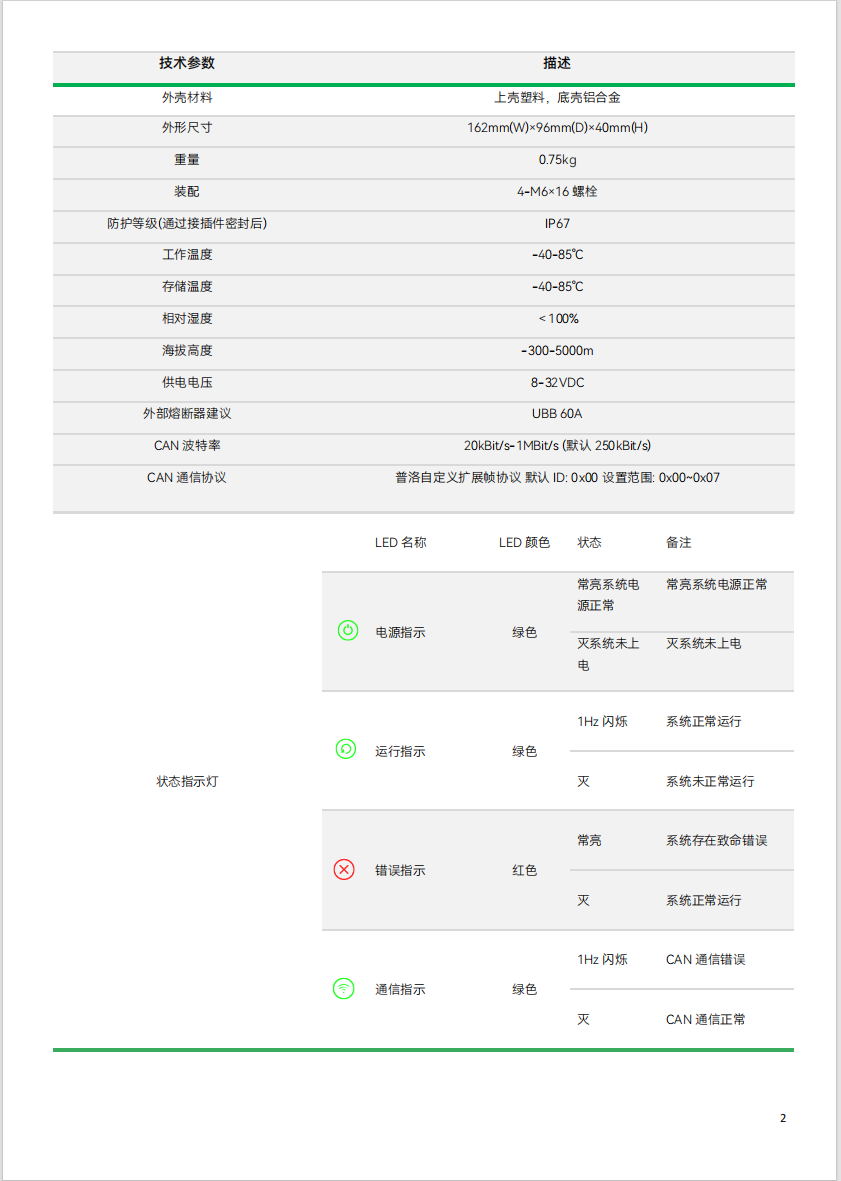

The upper shell is made of plastic, while the bottom shell is crafted from aluminum alloy. This combined design not only ensures the product’s lightweight nature but also enhances its durability and impact resistance.
2. Wide operating temperature range:
The operating temperature range spans from -40°C to 85°C, and the storage temperature range is similarly set between -40°C and 85°C. This allows the HEM1603C to withstand a wide variety of extreme temperature environments, ensuring reliable operation under diverse climatic conditions.

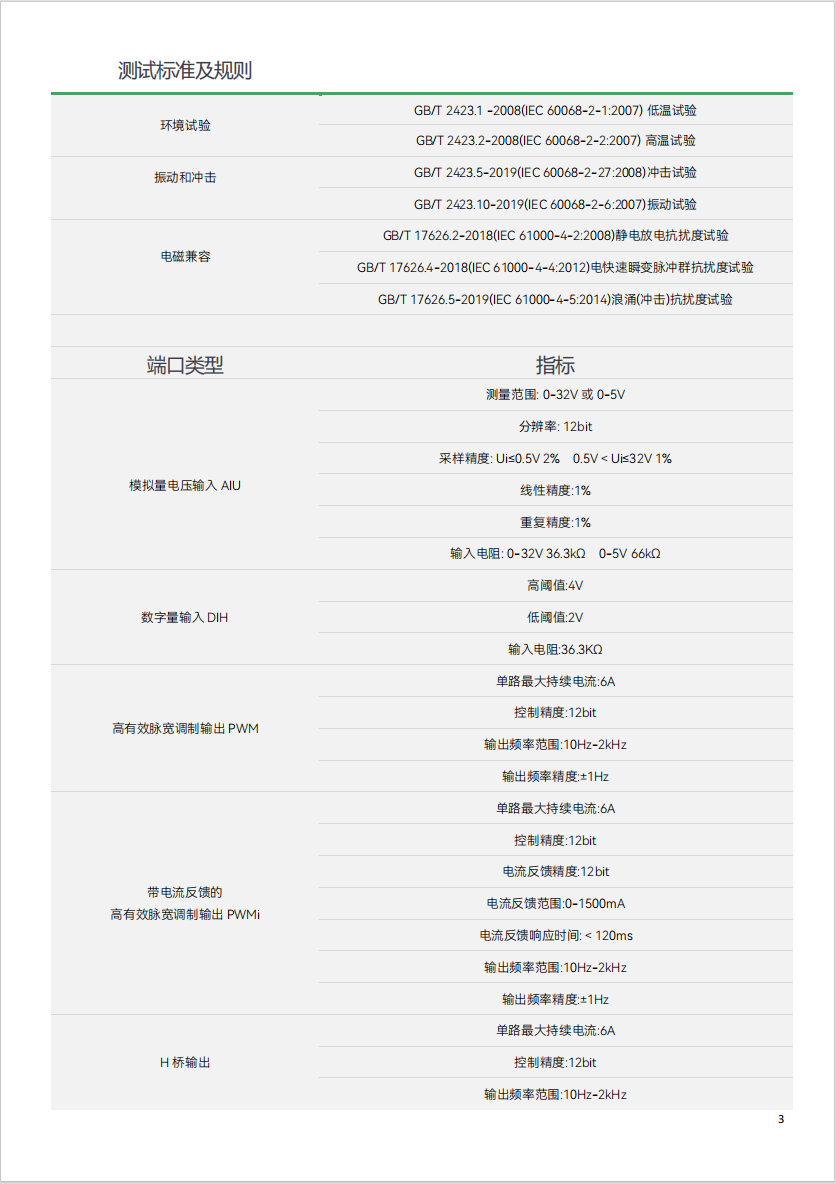

3. High-precision analog input/output:
Both the analog voltage input and current input feature 1% linear accuracy and 1% repeatability, ensuring accurate data acquisition and control while enhancing the system's overall performance.
4. Configurable output types:
It supports multiple output types, including PWM (Pulse Width Modulation output) and PWMi (high-active Pulse Width Modulation output with current feedback), among others. These output types can be configured according to actual needs, enhancing the system's flexibility and control precision.
Classification:
Products
IO module
