HEM1601C Harsh Environment IO Module
The HEM1601C rugged environment IO module boasts advantages and features such as an intelligent distributed IO system, a wide voltage input range, high protection ratings, flexible input/output channel configurations, robust computing capabilities, and an extensive array of communication ports—making it an outstanding IO module product perfectly suited for harsh operational environments.
Advantages:
1. Intelligent Distributed I/O System:
HEM1601C supports intelligent distributed IO systems and can be flexibly connected via an injection-molded harness system, making it easy to integrate and expand across a variety of industrial environments.
2. Wide voltage input range:
The product supports a wide voltage input range of 8–32VDC, making it compatible with various power environments and enhancing both its versatility and reliability.
3. High Protection Level:
The product meets the IP67 protection rating, ensuring stable operation even in harsh industrial environments while effectively preventing dust and water from entering.
4. Flexible input/output channel configuration:
The total number of input/output channels is 16 (with a maximum of 10 inputs and up to 14 outputs), and these channels offer versatile, configurable functionality, including 0–5V / 0–32V / 0–20mA analog input/output, DIH (digital input with high threshold), DOH (digital output with high-level activation), PWM (pulse-width modulation output), and more—catering to the diverse needs of various application scenarios.
5. Powerful computing capability:
Featuring a 32-bit Cortex M4 processor running at 120MHz, the product delivers powerful computing capabilities and rapid data-processing speed.
6. Abundant communication ports:
Provides 1×CAN 2.0B communication port, supporting Prolo's custom extended frame protocol for seamless data communication and integration with other devices.
Features:

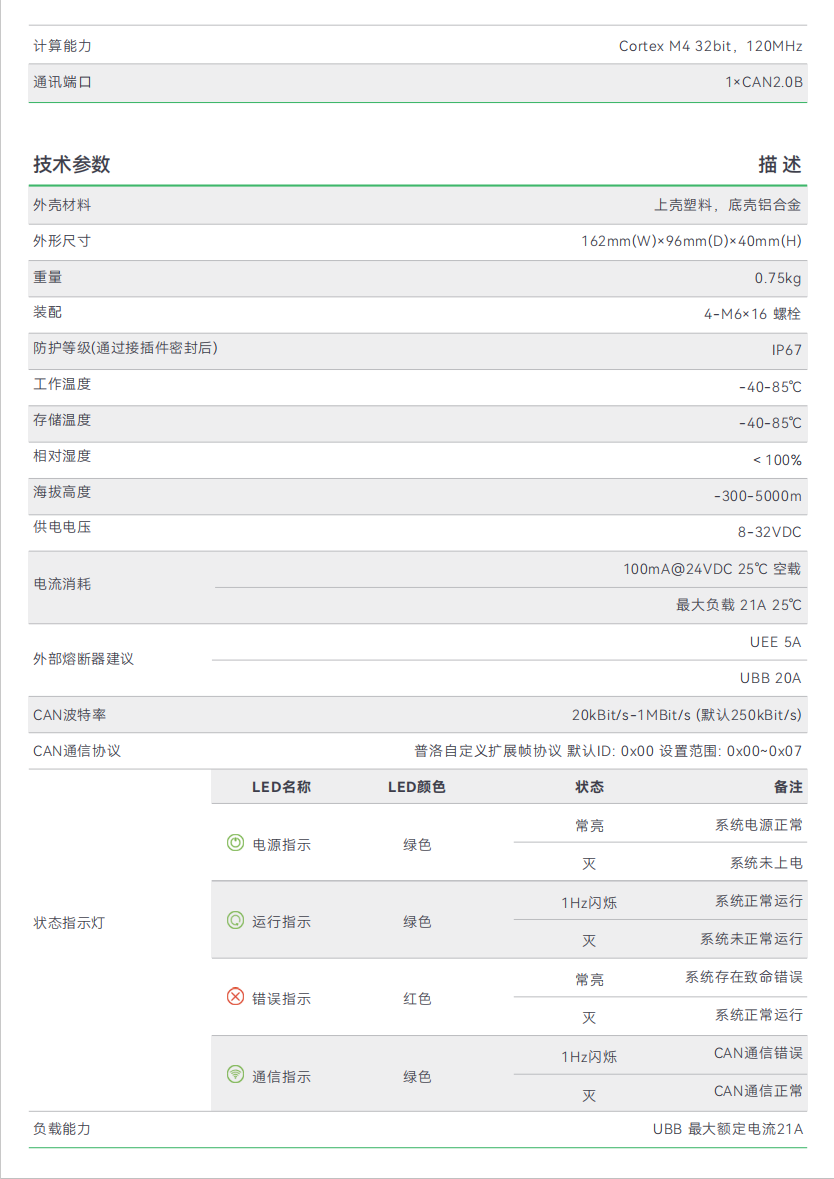

1. Robust and Durable Shell Design:

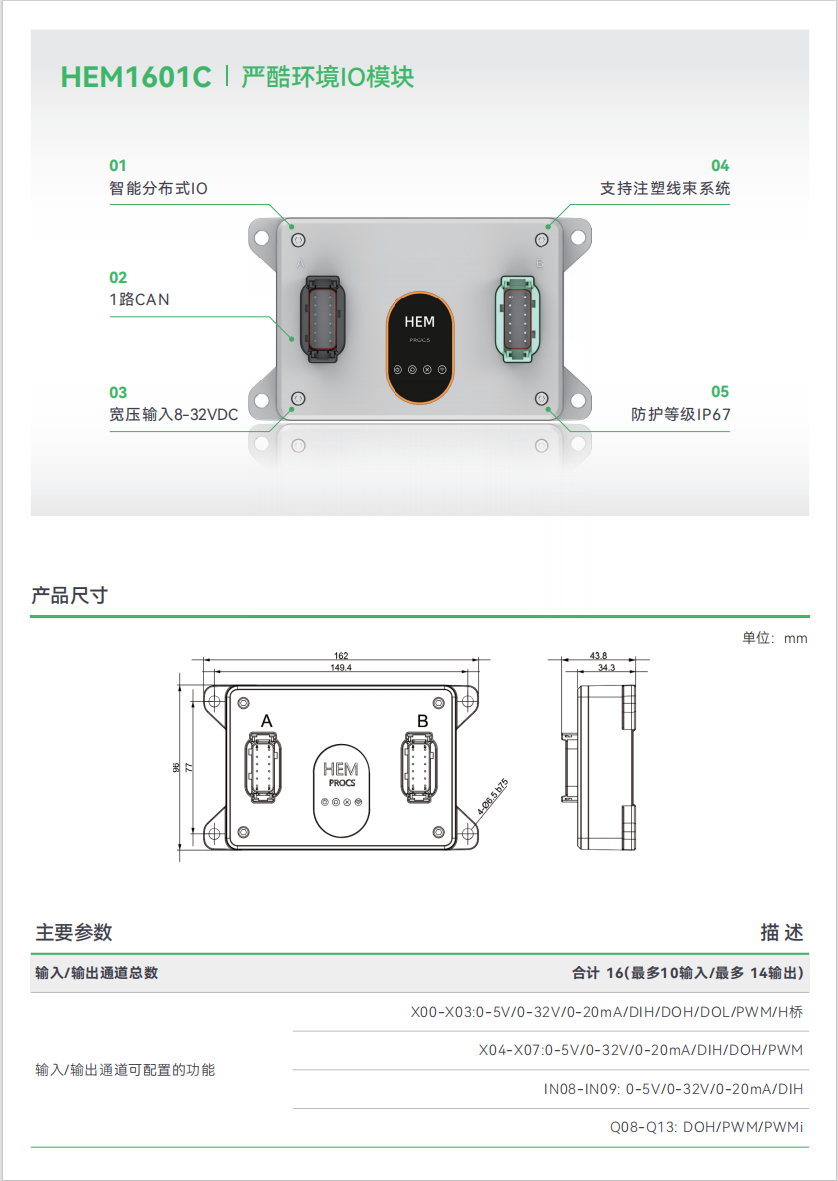

The upper shell is made of plastic, while the bottom shell is crafted from aluminum alloy. The product measures 162mm (W) × 96mm (D) × 40mm (H) and weighs 0.75kg. It is assembled using four M6×16 bolts, ensuring both stability and durability.
2. Wide operating temperature range:
The operating temperature range spans from -40°C to 85°C, and the storage temperature range is similarly set between -40°C and 85°C, making it suitable for a variety of extreme temperature environments.
3. Multiple indicator light statuses:
It provides multiple indicator light statuses, including power indication, operation indication, error indication, and communication indication, allowing users to easily understand the product's working status and fault information.

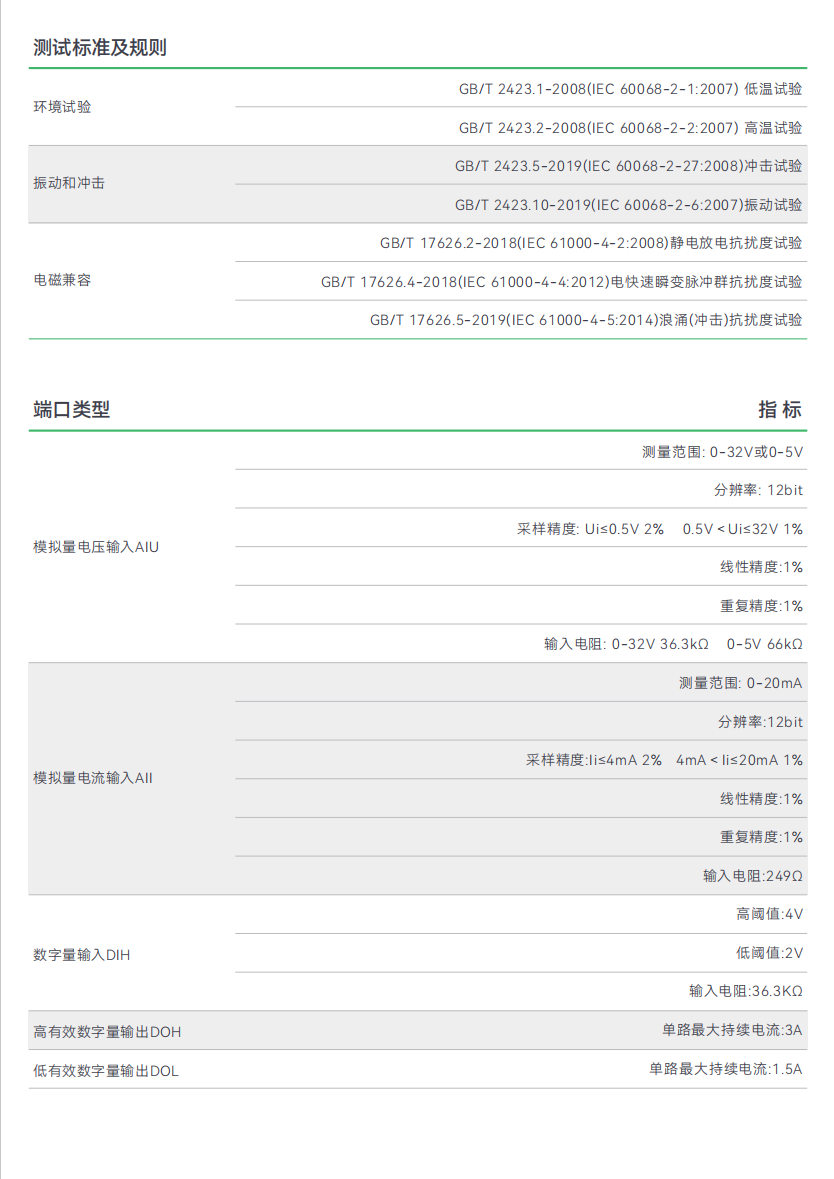

4. High-precision analog input/output:
The analog voltage input features a linearity accuracy of 1% and a repeatability accuracy of 1%, while the analog current input boasts the same linearity and repeatability accuracies—both at 1%—ensuring precise data acquisition and control.

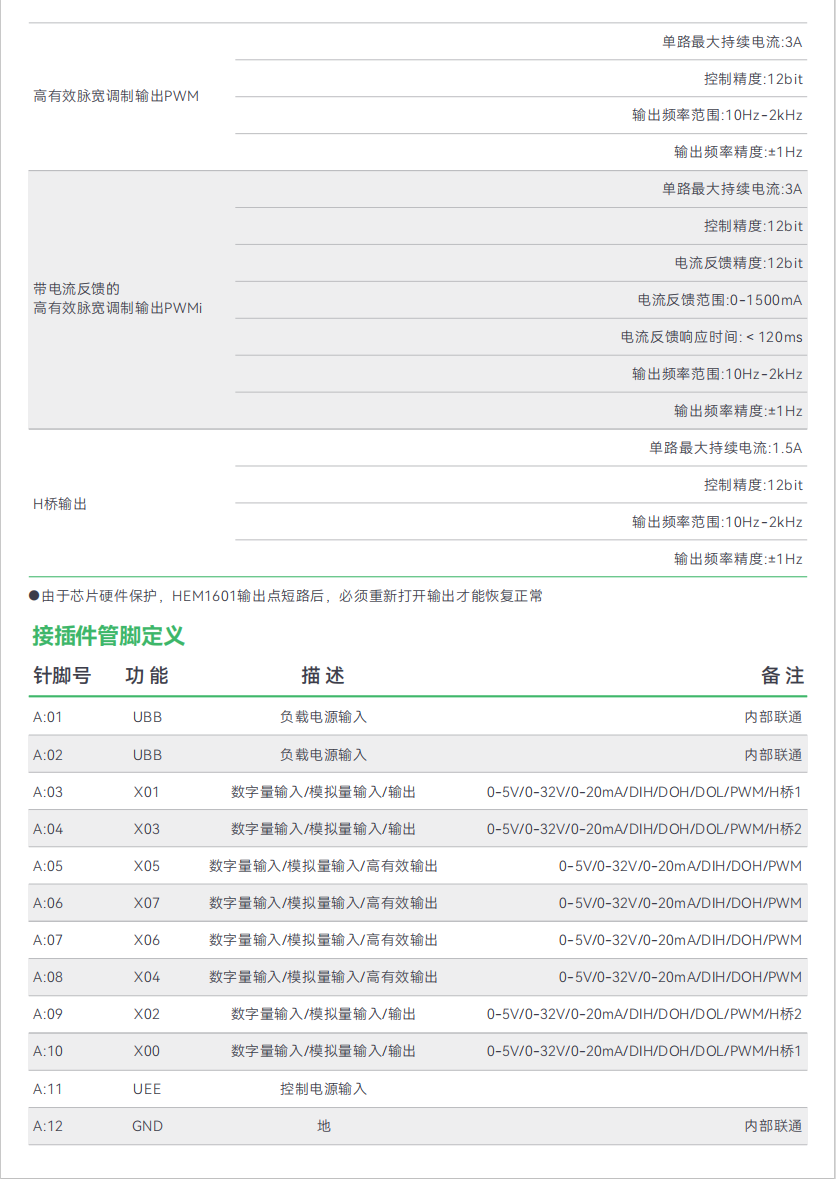

5. Configurable Output Types:
It supports multiple output types, including digital output (DOH), low-active digital output (DOL), high-active pulse-width modulation output (PWM), high-active pulse-width modulation output with current feedback (PWMi), and H-bridge output, catering to a wide range of control requirements.
Classification:
