HEC0110 Harsh Environment Controller
The HEA1001C product features a wide voltage operating range (8–32 VDC) and ultra-low power consumption (≤100 mA), supporting flexible CAN communication. It has successfully passed multiple electromagnetic compatibility tests, demonstrating robust resistance to electromagnetic interference. The device operates reliably across an extended temperature range from -40°C to 85°C and boasts an IP67 protection rating, highlighting its exceptional reliability and durability. Additionally, the product incorporates a high-performance 32-bit Cortex-M4 MCU processor, equipped with comprehensive status indicator lights and a versatile array of input/output channels. It supports large-capacity storage (up to 2 GB) and delivers powerful load-driving capabilities, with a maximum rated drive current of 3 A for high-side outputs—enabling direct speaker activation. Furthermore, the device includes a reverse-sound alert function, enhancing both safety and practicality.
Advantages:
1. Wide Voltage Operating Range: The product can operate within a broad voltage range of 8 to 32 VDC, enhancing its versatility and stability while accommodating diverse power supply environments.
2. Low-Power Design: Under 24V with no external load, the current consumption is ≤100mA, indicating that the product features low power usage, which helps conserve energy and extend the device's operational lifespan.
3. Flexible CAN Communication: Supports CAN baud rates ranging from 20 kBit/s to 1 MBit/s, with a default ID of 0x28. This provides flexible communication configuration options, making it easy to integrate and communicate with other devices.
4. Strong electromagnetic compatibility: The product has successfully passed multiple electromagnetic compatibility tests (such as the GB/T 17626 series standards), all at Test Level 4, demonstrating its excellent resistance to electromagnetic interference and ensuring stable operation even in complex electromagnetic environments.
5. Wide Operating Temperature Range: With an operating temperature range of -40°C to 85°C, the product can withstand extreme environmental temperatures, enhancing its reliability and durability.
6. High Protection Rating: With a protection rating of IP67, the product is dustproof and waterproof, enabling it to operate reliably even in harsh environmental conditions.
Features:
1. High-performance processor: Powered by a 32-bit Cortex M4 MCU, this processor delivers robust computing power and processing speed, enabling support for complex control logic and algorithms.
Rich status indicators: The device's operating status—such as voice playback, normal operation, CAN communication error, or boot mode—can be clearly understood through the varying blink rates of the blue LED indicator.
2. Diverse Input/Output Channels: Offers 4 input and 4 output channels, supporting multiple input/output types (such as digital input, analog voltage input, analog resistance input, high-side output, etc.), thereby meeting a wide range of application needs.
3. Large-capacity storage: Equipped with a built-in 2GB storage capacity, providing ample space for data storage and program upgrades.
4. Powerful Load-Driving Capability: The high-side output features a maximum rated drive current of 3A, enabling direct driving of loads such as speakers. It supports 4Ω/8Ω speakers rated up to 30W, delivering a peak sound level of 110 decibels under specific test conditions—resulting in excellent audio output performance.

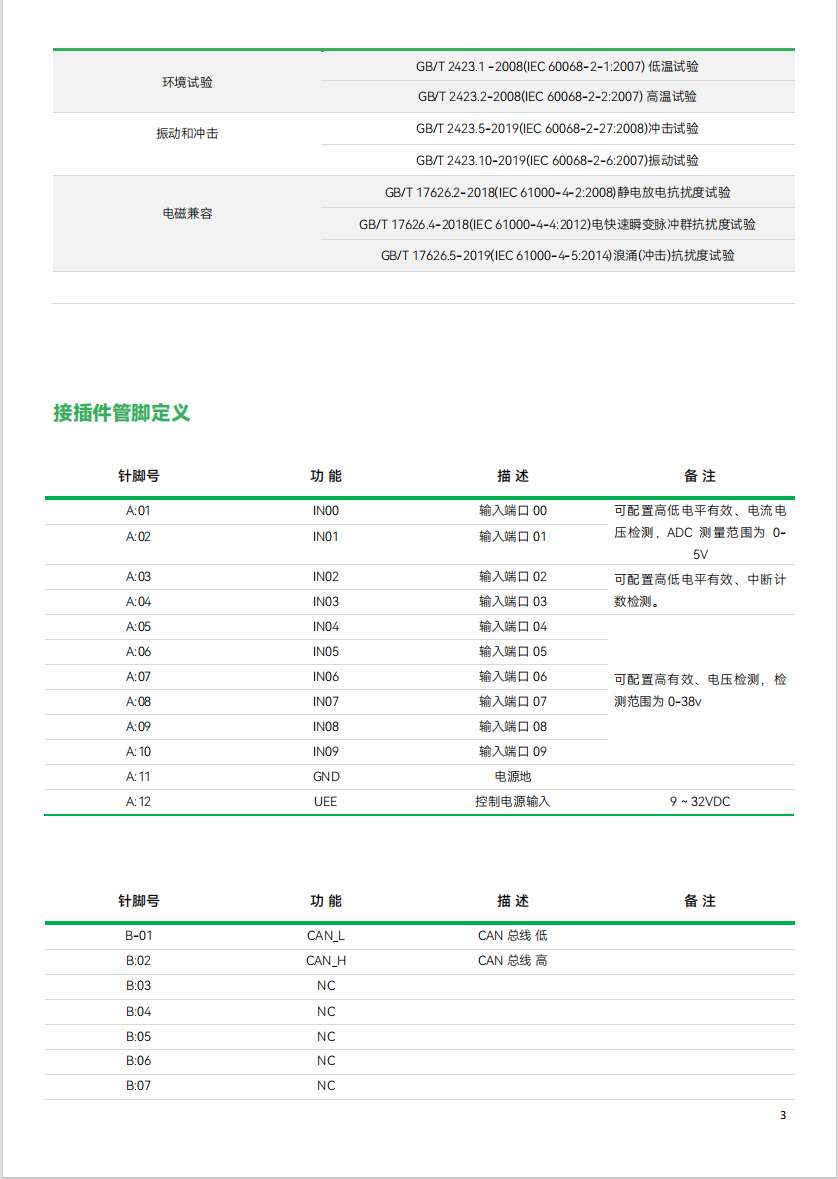

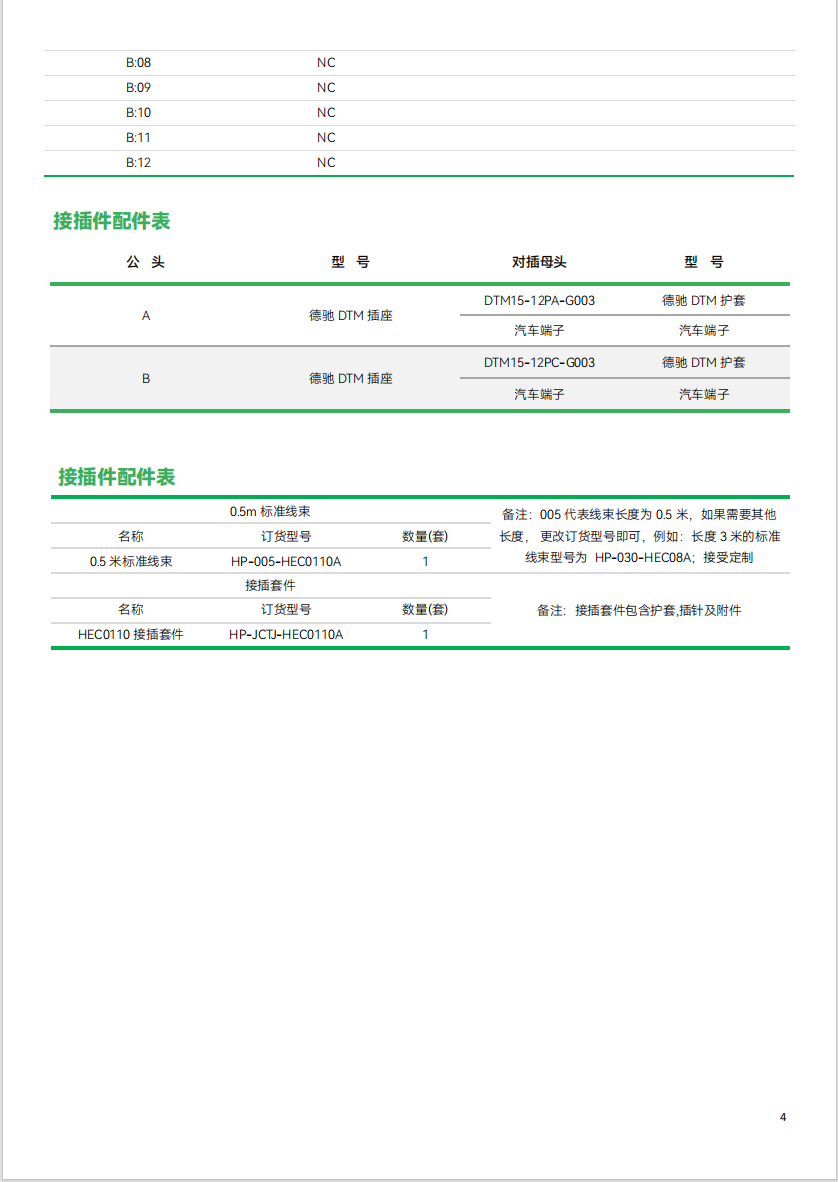

5. Flexible Connector Design: Utilizing the DTM13-12PA connector, along with detailed pin definitions and a comprehensive accessories list, this design simplifies both equipment installation and maintenance.
6. Reverse Vehicle Voice Alarm Function: Pin X00 serves as the reverse signal input. Even if the system’s main power supply (UEE) and load power supply (UBB) are not powered, a high-level input at this pin will still activate the reverse vehicle voice alarm, enhancing the product’s safety and practicality.
