HEC0118 Harsh Environment Controller
The HEC0118 product features a wide power supply voltage range (8–32 VDC) and a low-power design (power consumption below 2W at 24V). It supports flexible CAN communication configurations, with adjustable baud rates from 125 to 1000 Kbps. Additionally, the product boasts an IP67 protection rating, offering excellent dustproof and waterproof capabilities. Furthermore, the device is equipped with a BeiDou-GPS dual-mode satellite positioning antenna and supports AGPS for enhanced accuracy. It also comes with a rich array of interface options, enabling a variety of input/output functions. A built-in status indicator light provides clear visual feedback on the device’s operational state. With its compact design and robust environmental adaptability, the product offers customizable wiring harnesses and connector options to meet the specific needs of diverse application scenarios.
Advantages:
1. Wide Power Voltage Range: The product can operate under a power voltage of 8 to 32 VDC, offering excellent power adaptability and meeting the requirements of various power supply environments.
2. Low-power design: Operating at 24V voltage with power consumption below 2W, the product demonstrates minimal energy usage, helping to conserve energy and reduce heat generation.
3. Flexible CAN Communication: Supports 1 CAN 2.0B port, with CAN baud rates configurable via parameters (125, 250, 500, 1000 Kbps), offering versatile communication options for seamless integration with other devices.
4. High Protection Rating: With a protection rating of IP67, the product boasts excellent dustproof and waterproof capabilities, enabling it to operate reliably even in harsh environmental conditions.
5. Precise positioning capability: Equipped with a 5-meter BeiDou GPS dual-mode satellite positioning antenna, supporting AGPS, this device delivers high positioning accuracy, making it ideal for applications that require precise location information.
Features:

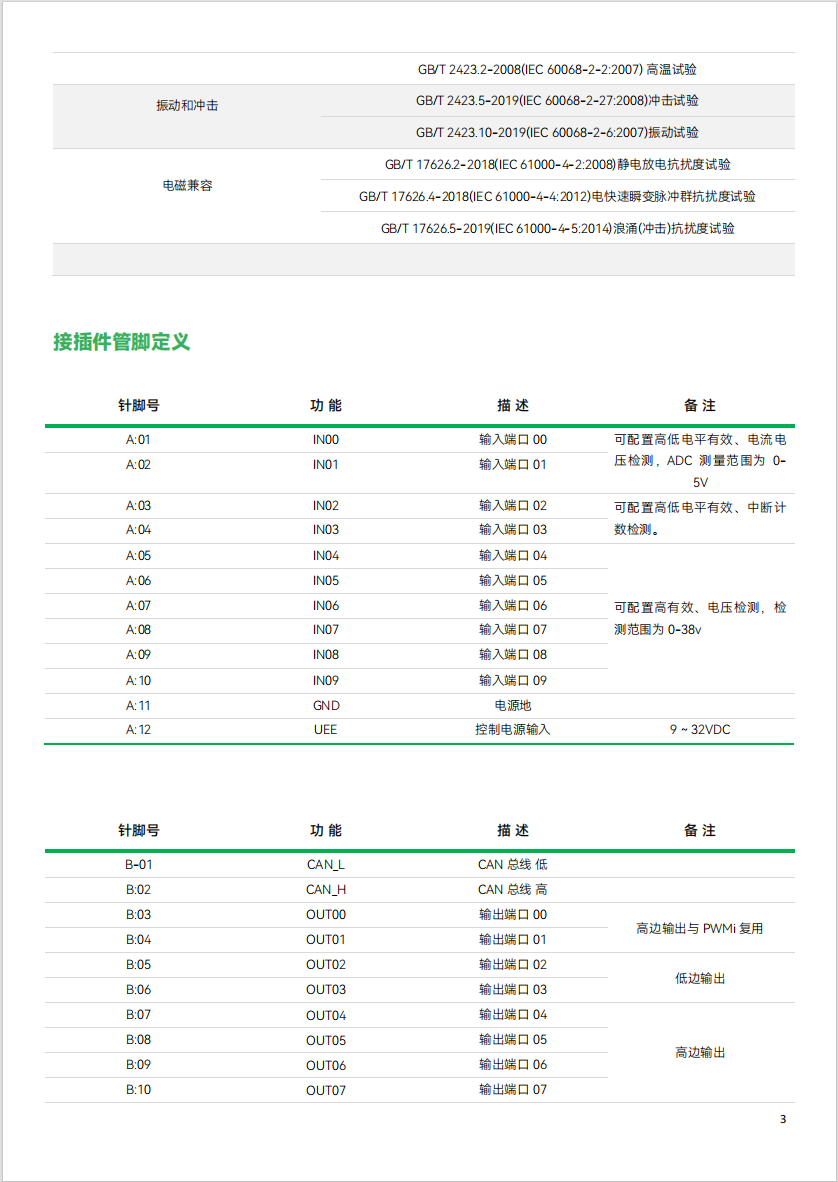

1. Rich interface configuration: Offers multiple input/output ports, supporting features such as high/low-level validity, current and voltage detection, ADC measurement, and interrupt count detection, catering to a variety of application needs.
2. Flexible terminal resistor configuration: The CAN terminal resistor is 120 ohms and can be easily adjusted by the user according to actual needs through parameter settings.

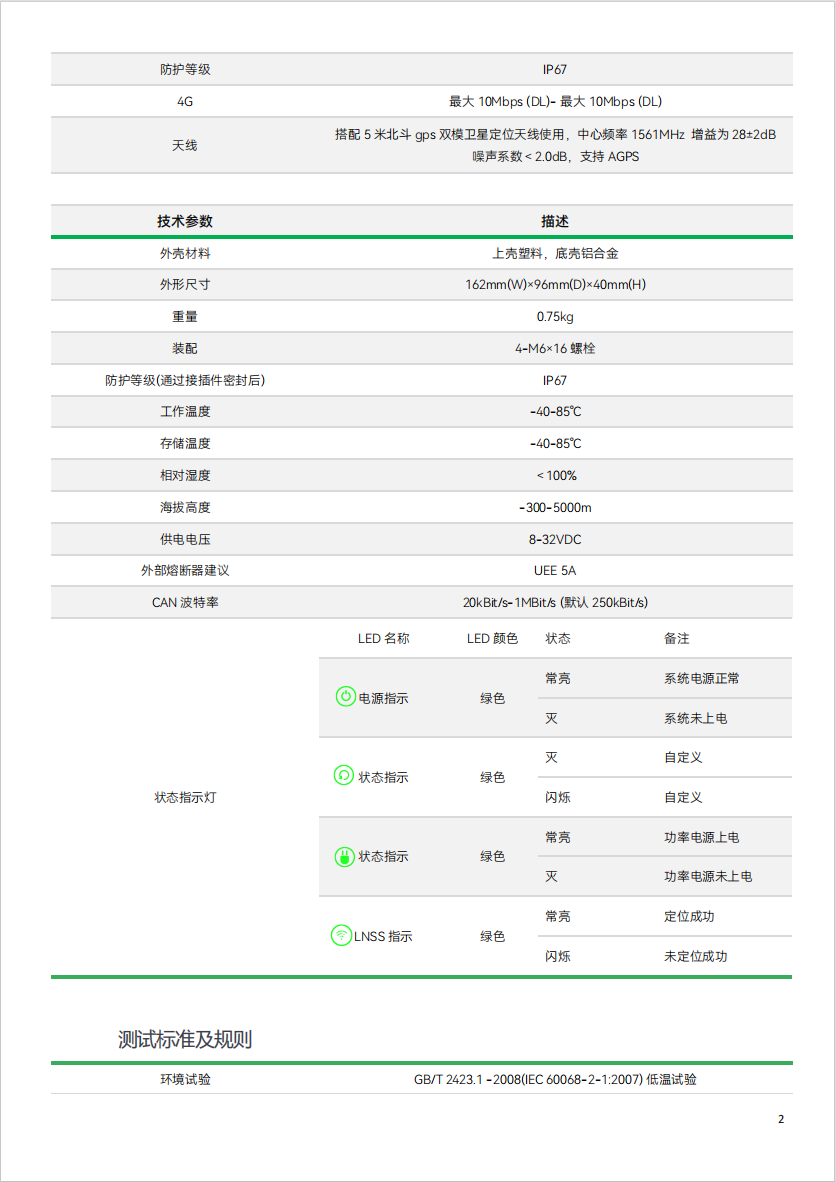

3. Multiple status indicators: The device’s power status, power supply status, and positioning status can be intuitively understood through the different states of the green LED indicator—steady on, off, or blinking.

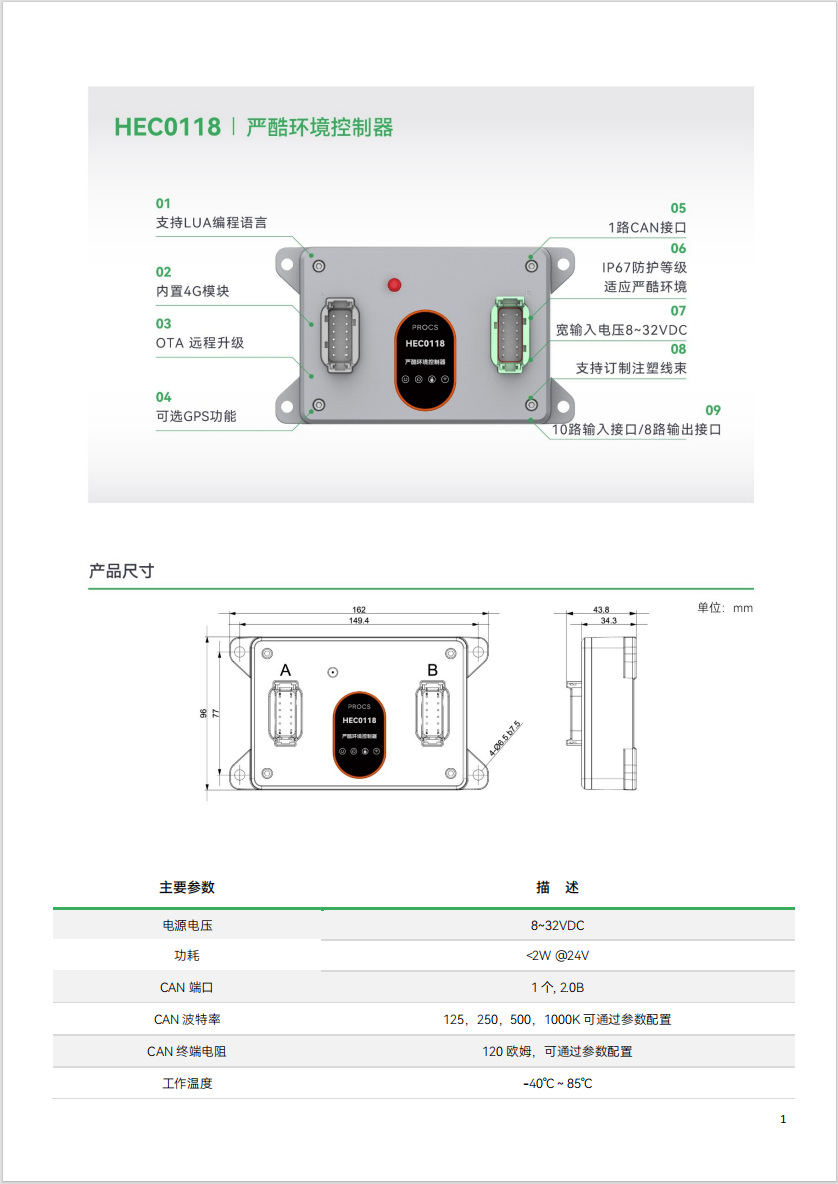

4. Compact Design: The enclosure features an upper shell made of plastic and a base shell crafted from aluminum alloy. It measures 162mm (W) × 96mm (D) × 40mm (H) and weighs just 0.75kg, making it easy to install and carry.

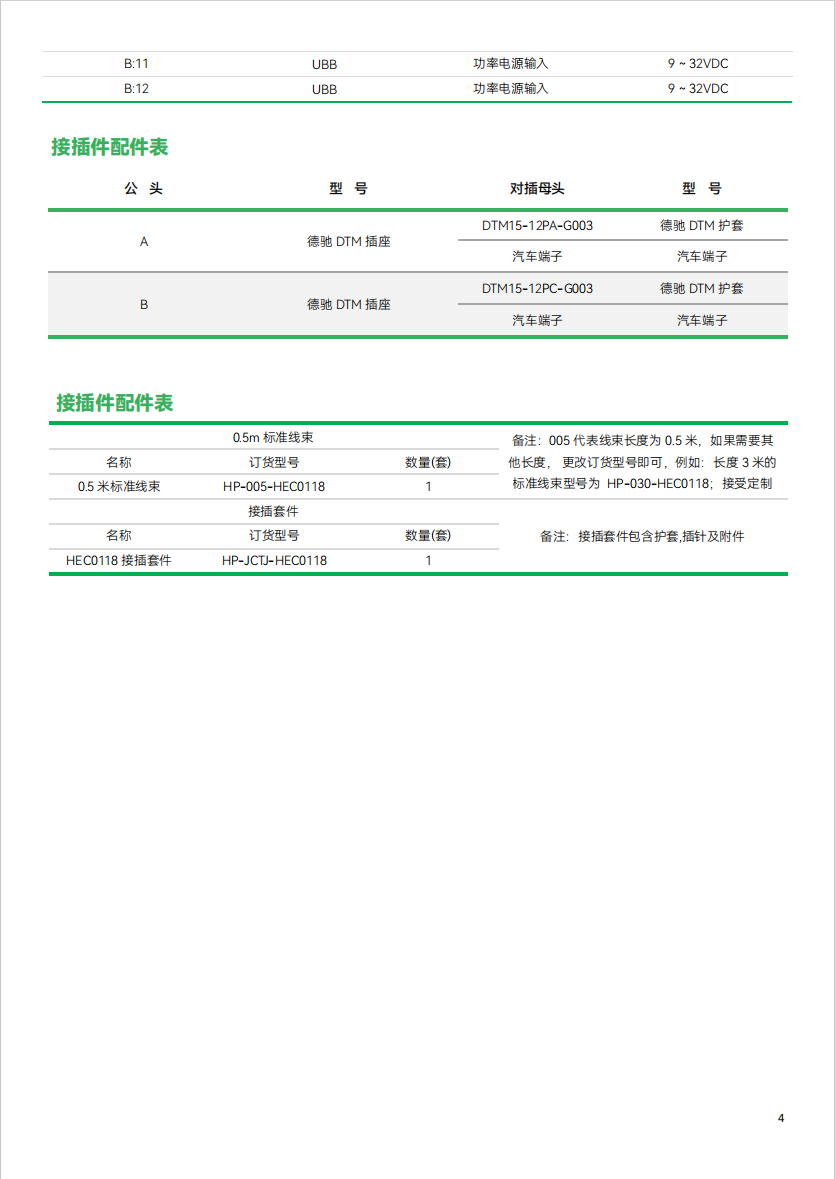

5. Strong Environmental Adaptability: Multiple environmental tests—including low-temperature tests, high-temperature tests, vibration tests, and shock tests—demonstrate that the product can operate reliably even under extreme environmental conditions. Customized Wiring Harnesses and Connectors: We offer standard wiring harnesses and connector kits, while also providing customization services to allow users to easily select and install products tailored to their specific needs.
