HEC0204 Harsh Environment Controller
HEC0204 supports a wide power voltage range (8–32 VDC) and features low power consumption (less than 2 W at 24 V), demonstrating excellent power adaptability and energy efficiency. It is equipped with three CAN 2.0B ports, enabling flexible communication with multiple CAN baud rate configurations (125, 250, 500, 1000 Kbps). Additionally, the device boasts an IP67 protection rating, making it highly resistant to environmental conditions and capable of operating reliably even under extreme circumstances. The compact and durable design incorporates an upper shell made of plastic and a lower shell crafted from aluminum alloy. The product also offers a rich array of interfaces, including versatile options such as USB, RS485, RS232, and Ethernet, along with multiple input/output ports, perfectly tailored to meet the demands of complex applications. Furthermore, HEC0204 supports customized wiring harnesses and connectors, simplifying installation and maintenance processes. Finally, the product has successfully passed rigorous electromagnetic compatibility and environmental testing standards, ensuring its exceptional reliability and stability in diverse operational environments.
Advantages:
1. Wide Power Supply Voltage Range and Low Power Consumption:
Supports a power voltage range of 8–32 VDC, offering excellent power adaptability. At 24V, power consumption is less than 2W, making it energy-efficient and reducing heat generation.
2. Flexible CAN Communication:
Equipped with 3 CAN 2.0B ports, offering robust communication capabilities. Supports multiple CAN baud rate configurations (125, 250, 500, 1000 Kbps), catering to diverse communication needs.
3. High Protection Level and Environmental Adaptability:
It meets the IP67 protection rating, offering dustproof and waterproof capabilities, ensuring stable operation even in harsh environments. The operating temperature range is from -40°C to 85°C, and the storage temperature range is also -40°C to 85°C, making it highly adaptable.
Features:
1. Compact and durable casing design:
The casing features an upper shell made of plastic and a lower shell crafted from aluminum alloy, making it both lightweight and highly durable. Its external dimensions are 162mm (W) × 96mm (D) × 40mm (H), and it weighs just 0.75kg, making it easy to install and carry around.
2. Rich interface configurations:
It provides multiple communication interfaces such as USB, RS485, RS232, and Ethernet, catering to diverse communication needs. Equipped with multi-channel input/output ports, it supports various functions like active high/low levels and current/voltage detection, offering flexible application options.
3. Customized Wire Harnesses and Connectors:

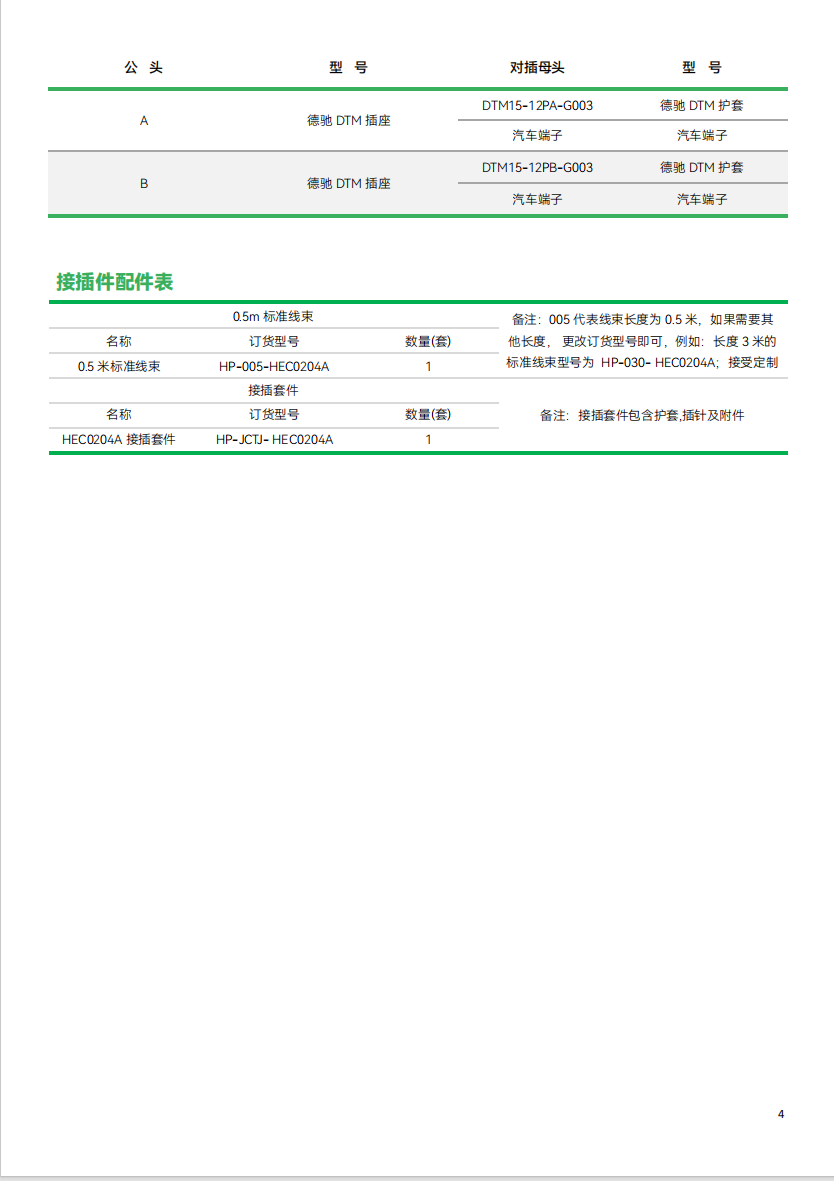

Supports customized harnesses and connectors, making it easy for users to select and install according to their specific needs. Offers standard 0.5-meter harnesses and connector kits for convenient and quick installation.
4. High Reliability and Stability:
By meeting multiple electromagnetic compatibility and environmental testing standards (such as the GB/T 17626 series, GB/T 2423 series, and more), we ensure the product’s high reliability and stability. Equipped with comprehensive error indicators and status indicator lights, the product makes it easy for users to monitor and maintain.
Classification:
