HED1007B Harsh Environment Display

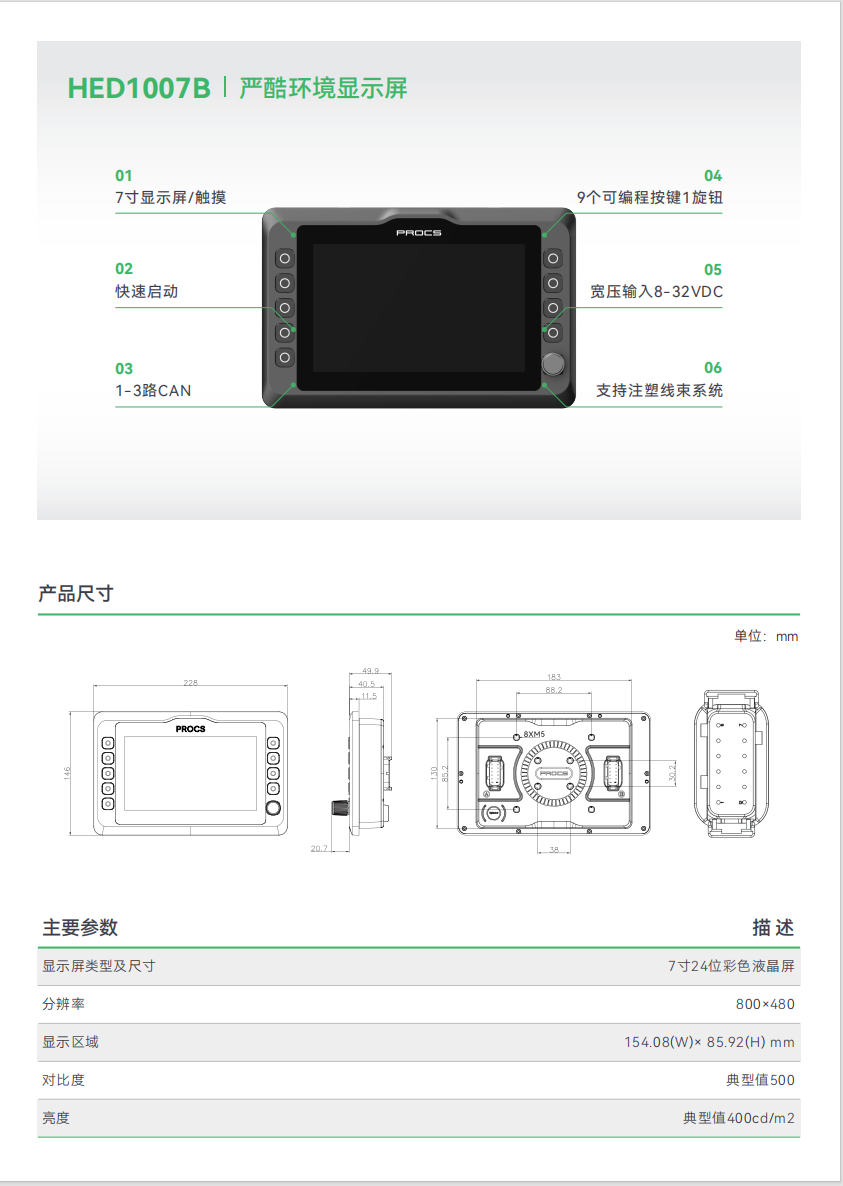

HED1007B is a 7-inch display specifically designed for harsh environments, featuring a 24-bit color LCD screen with a resolution of 800×480 and a brightness of 400 cd/m², delivering crystal-clear visuals. It supports quick startup, comes equipped with 1–3 CAN interfaces, and offers convenient operation. With a wide operating temperature range (-20°C to 70°C) and an IP65-rated protection level, it’s perfectly suited for challenging conditions. Its compact design allows for both embedded and stand-mounted installations, and it’s compatible with the Delphi DTM interface. Additionally, the processor is highly energy-efficient, includes a built-in real-time clock, and supports wide-voltage input (8–32 VDC), making it an ideal choice for industrial and automation applications.
Advantages:
1. Display Screen and Display Effect:
Equipped with a 7-inch 24-bit color LCD screen with a resolution of 800×480, delivering crisp and clear display performance. Typical brightness is 400 cd/m², ensuring excellent visibility even in harsh environments.
2. Quick Startup and Communication Interface:
Supports quick startup, enhancing user experience. Integrates 1–3-channel CAN interfaces for easy communication and data transfer with other devices.
3. Ease of Operation:
Equipped with 9 programmable buttons and 1 knob, it offers flexible and convenient operation, meeting the needs of various application scenarios.
4. Environmental Adaptability:
It operates within a wide temperature range (-20°C to 70°C) and can even be stored in an even broader range (-30°C to 80°C), making it suitable for various harsh environments. The product boasts an IP65 protection rating, effectively preventing dust and moisture from entering, thereby enhancing its durability.
Features:

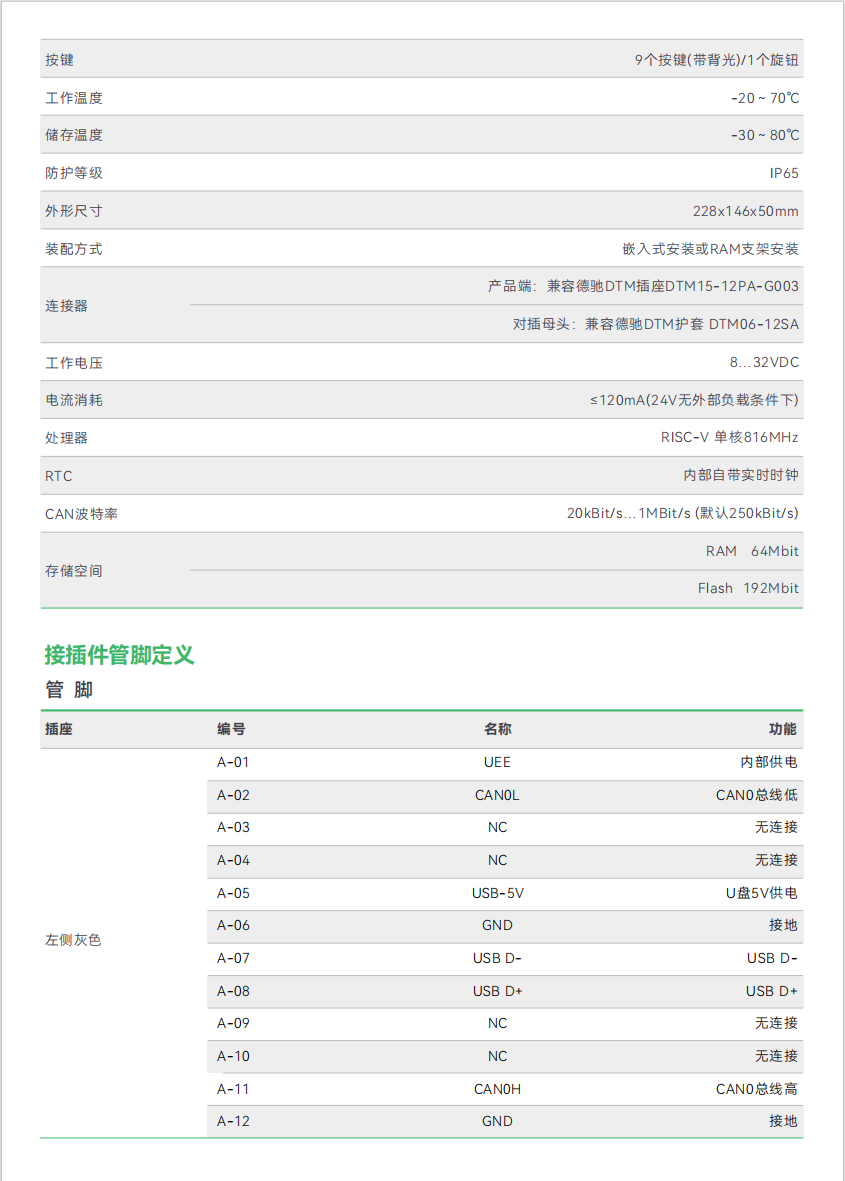

1. External Dimensions and Installation Method:

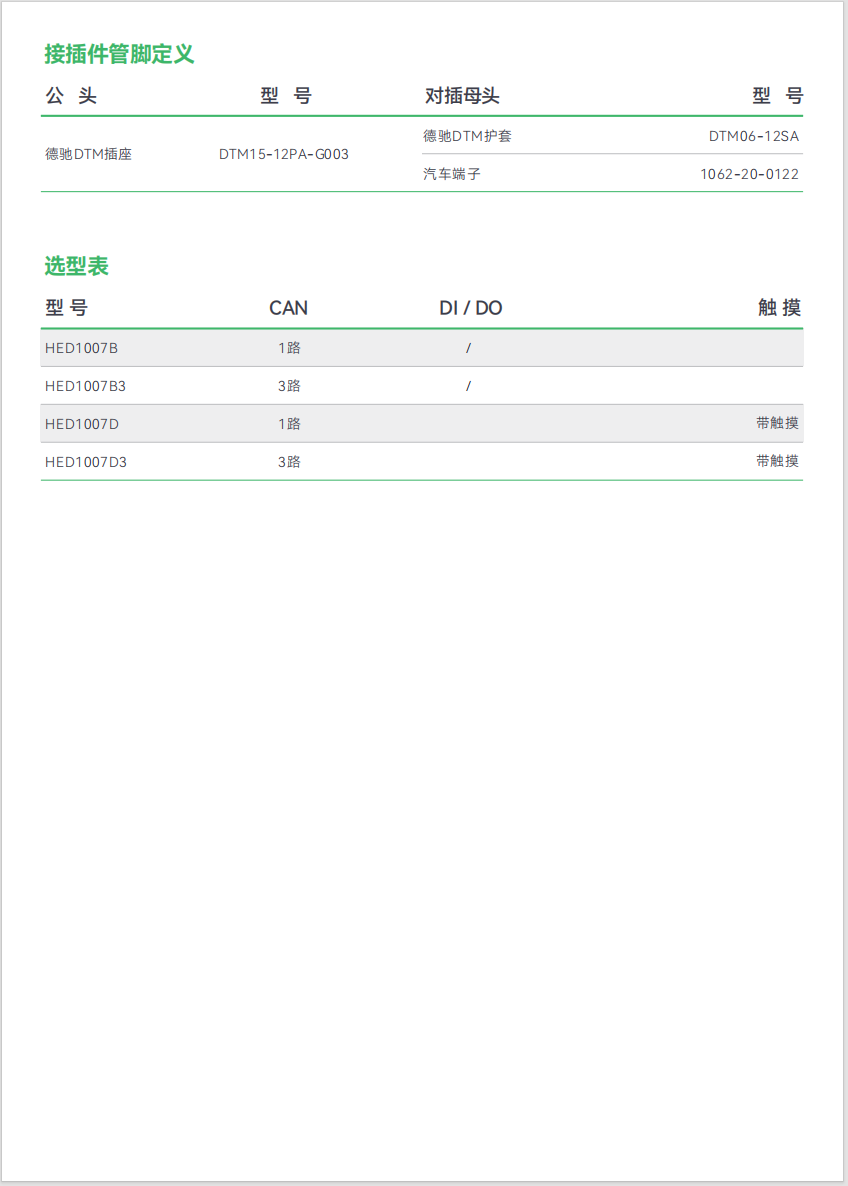

With compact dimensions (228 x 146 x 50 mm), it’s easy to integrate and install. Supports both embedded installation or RAM bracket mounting, and is compatible with Delphi DTM connectors and housings, making integration and maintenance hassle-free.
2. Processor and Performance:
It features an RISC-V single-core 816MHz processor, delivering stable computing performance. Power consumption is low (≤120mA at 24V under no external load conditions), making it energy-efficient and highly effective.
3. Memory and Real-Time Clock:
Built-in 64Mbit RAM and 192Mbit Flash storage space to meet data storage and processing needs. It also features a built-in real-time clock for convenient time management and data logging.
4. Wide-voltage input:
Supports wide-voltage input (8-32VDC), accommodating various voltage environments and enhancing the product's versatility.
Classification:
Products
Human-computer interaction
